REAR HEAT DUCT No.2 REMOVAL/INSTALLATION

id071100010600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  second-row seat (LH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

(2)  second-row seat (RH) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

(3)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

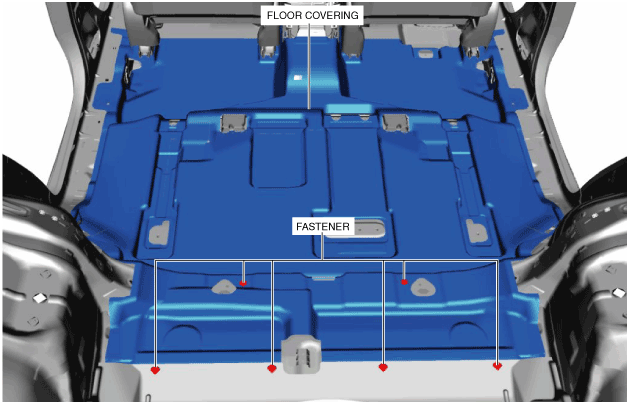

3.  Remove the fasteners.

ac9uuw00007504

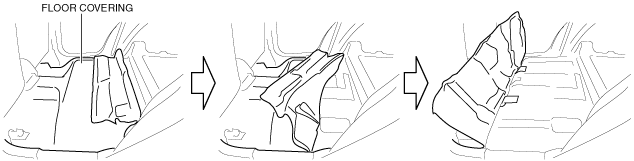

4.  Turn the floor covering over.

ac9uuw00007505

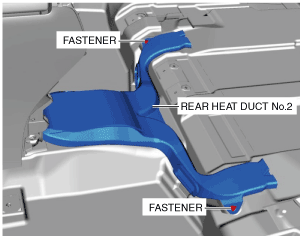

5.  Remove the fasteners.

ac9uuw00007506

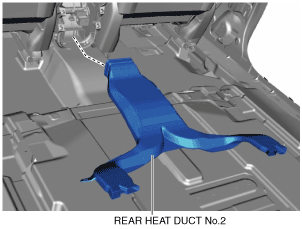

6.  Remove the rear heat duct No.2.

ac9uuw00007507

7.  Install in the reverse order of removal.
