AIR BAG SYSTEM LOCATION INDEX

id081000805300

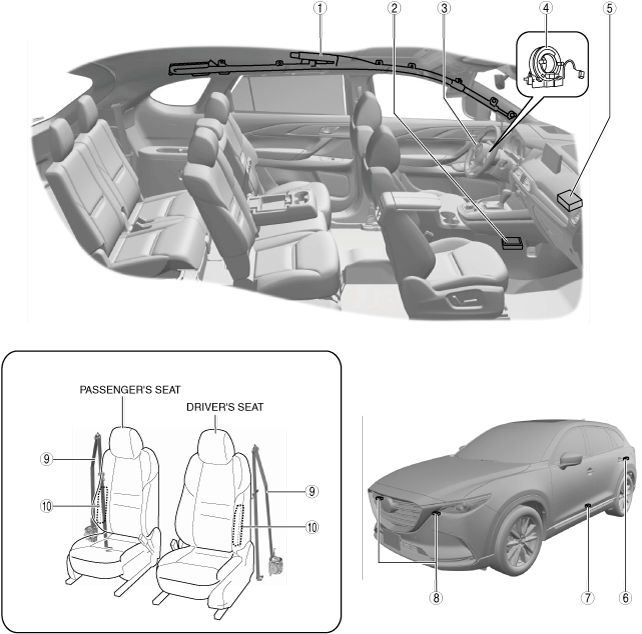

ac9wzw00004591

1
Curtain air bag module
(See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
2
SAS control module
(See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
(See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION).)
(See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA).)
3
Driver-side air bag module
(See DRIVER-SIDE AIR BAG MODULE REMOVAL.)
(See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
4
Clock spring
(See CLOCK SPRING REMOVAL/INSTALLATION.)
(See CLOCK SPRING ADJUSTMENT.)
(See CLOCK SPRING INSPECTION.)
5
Passenger-side air bag module
(See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
6
Side air bag sensor No.2
(See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
7
Side air bag sensor No.1
(See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION.)
8
Crash zone sensor
(See CRASH ZONE SENSOR REMOVAL/INSTALLATION.)
9
Front pre-tensioner seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
10
Side air bag module
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)

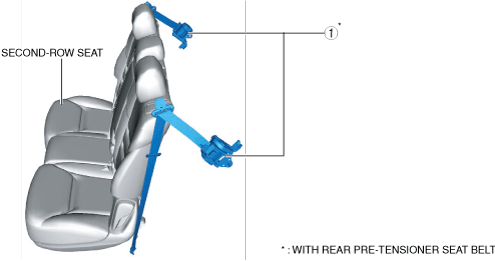

ac9wzw00004592

1
Rear pre-tensioner seat belt
(See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES.)
