AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES

id081000801100

Special Service Tool (SST)

49 H066 002

Deployment tool
49 B066 004

Adapter harness
49 L066 002

Adapter harness

Warning
•  A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module or pre-tensioner seat belt. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.
Caution
•  Deploying the air bag modules and pre-tensioner seat belts inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner seat belts outside the vehicle.
•  If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner seat belts, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).
•  When disposing of an operated (deployed) air bag module and pre-tensioner seat belt, refer to “AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES”.(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES.)

Deployment Procedure for Inside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module, pre-tensioner seat belt, and the SST (Adapter harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side air bag module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.)

2.  Connect the SST (Adapter harness) to the driver-side air bag module as shown in the figure.

ac9uuw00009113

3.  Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)

4.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

5.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

6.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

7.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

8.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver-side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can get burned. Do not touch the air bag module for at least 15 min after deployment.

9.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side air bag module

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

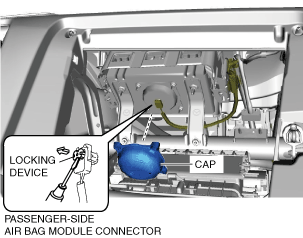

2.  Remove the cap.

ac9uuw00009116

3.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

4.  Disconnect the passenger-side air bag module connector.

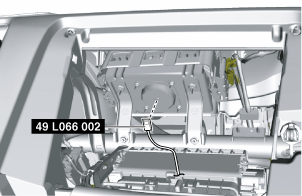

5.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

ac9uuw00009117

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side air bag module

1.  Disconnect the side air bag module connector.

ac9uuw00009119

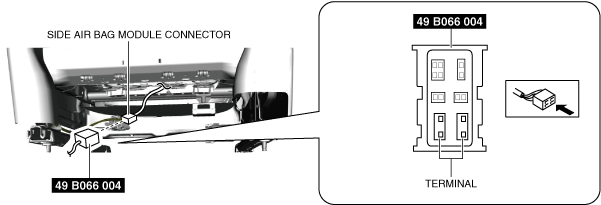

2.  Connect the SST (Adapter harness) to the side air bag module connector.

am3zzw00018422

3.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009121

4.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

5.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

6.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

7.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

8.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain air bag module

1.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(8)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(10)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(11)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(12)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(13)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(14)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(15)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(16)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(18)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
(19)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
(20)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(21)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(22)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(23)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(24)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(25)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(26)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(27)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(28)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(29)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(30)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(31)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(32)  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
(33)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Peel back the headliner.

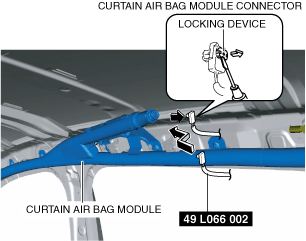

3.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac9uuw00009118

4.  Disconnect the curtain air bag module connector.

5.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Front pre-tensioner seat belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac9wzw00004580

3.  Disconnect the front pre-tensioner seat belt connector.

4.  Connect the SST (Adapter harness) as shown in the figure.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the front pre-tensioner seat belt.

ac9uuw00009115
Warning
•  The front pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the front pre-tensioner seat belt for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Rear Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(8)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

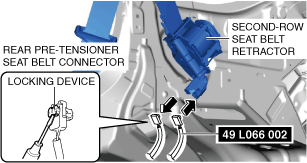

2.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac9wzw00004581

3.  Disconnect the rear pre-tensioner seat belt connector.

4.  Connect the SST (Adapter harness) as shown in the figure.

5.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009114

6.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

7.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

8.  Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.

9.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the rear pre-tensioner seat belt.

ac9uuw00009115
Warning
•  The rear pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the rear pre-tensioner seat belt for at least 15 min after deployment.

10.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Deployment Procedure for Outside of Vehicle

1.  Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2.  Switch the ignition off.

3.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner seat belt.

Note
•  The connector part of the air bag module, pre-tensioner seat belt, and the SST (Adapter harness) burns out from the high heat when the inflator is operated (deployed).

Driver-side air bag module

1.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.)

2.  Wrap the wiring harness (cross section 1.25 mm2{0.002 in2} or more) at least 3 times around the position shown in the figure for the driver-side air bag module.

ac9uuw00009123

3.  Wrap the wire (cross section 1.25 mm2{0.002 in2} or more) at least 4 times around the position shown in the figure for the wrapped wiring harness.

ac9uuw00009124

4.  Connect the SST (Adapter harness) to the driver-side air bag module.

ac9wzw00004582

5.  Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the wheel and the air bag module at least 4 times.

ac9uuw00009126
Warning
•  If the air bag module is not properly installed to the tire wheel, serious injury may occur when the air bag module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.

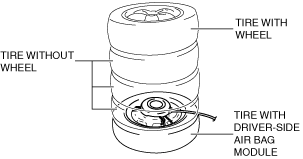

6.  Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009127

7.  Secure the tires with wire.

ac9uuw00009128

8.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009129

9.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

10.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

11.  Verify that all persons are standing at least 6 m {20 ft} away from the driver-side air bag module.

12.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the driver-side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

13.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Passenger-side air bag module

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Connect the SST (Adapter harness) to the passenger-side air bag module as shown in the figure.

ac9uuw00009130

4.  Place the padded surface of the passenger-side air bag module facing the center of the tire as shown in the figure. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

ac9uuw00009131
Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

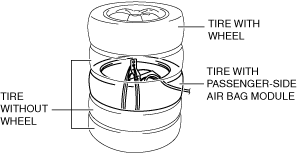

5.  Stack the tire with the passenger-side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the passenger-side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009132

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the passenger-side air bag module.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the passenger-side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Side air bag module

1.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
(2)  Front seat back trim and seat back pad (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
(3)  Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

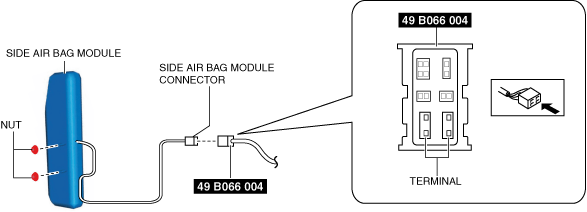

2.  Install the nuts.

ac9wzw00004665

3.  Connect the side air bag module connector to either one of the SST (Adapter harness) terminals shown in the figure.

4.  Put the side air bag module inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt at least 4 times.

ac9uuw00009141
Warning
•  If the air bag module is not properly secured to the tire, the tires may fall over by the impact of operation (deployment) and cause serious injury. To prevent this, secure the air bag module properly with the padded surface facing the center of the tire.

5.  Stack the tire with the side air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the side air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009142

6.  Secure the tires with wire.

ac9uuw00009128

7.  Connect the SST (Deployment tool) to the SST (Adapter harness).

am6xuw00006020

8.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

9.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

10.  Verify that all persons are standing at least 6 m {20 ft} away from the side air bag module.

11.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

12.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Curtain air bag module

1.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(4)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(6)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(8)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(10)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(11)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(12)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(13)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(14)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(15)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(16)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(18)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
(19)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
(20)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(21)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(22)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(23)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(24)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(25)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(26)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(27)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(28)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(29)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(30)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(31)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(32)  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
(33)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(34)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2.  Remove the curtain air bag module. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

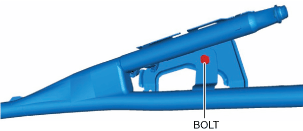

3.  Remove the bolt.

ac9uuw00009134

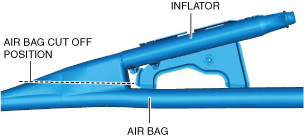

4.  Cut off the air bag part of the curtain air bag module at the position shown in the figure.

ac9uuw00009135
Warning
•  Be sure not to crush the pipe on the side where it is cut. If it is crushed completely, the interior pressure of the pipe will build up and can cause it to explode during air bag module operation (deployment).

5.  Connect the SST (Adapter harness) to the curtain air bag module as shown in the figure.

ac9uuw00009136

6.  Secure the curtain air bag module to the tire, by wrapping a wire (cross section 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times as shown in the figure.

ac9uuw00009137
Warning
•  If the air bag module is not properly installed to the tire, serious injury may occur when the air bag module is operated (deployed). Make sure to install the air bag module securely.

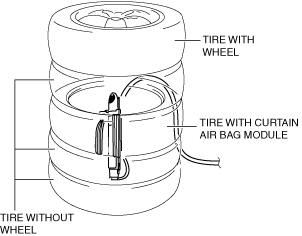

7.  Stack the tire with the curtain air bag module on top of two tires without wheels. Stack a tire without a wheel on top of the tire with the curtain air bag module, and then stack another tire with a wheel on the very top.

ac9uuw00009138

8.  Secure the tires with wire.

ac9uuw00009128

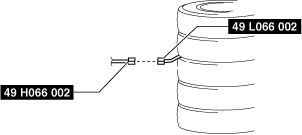

9.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009139

10.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

11.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

12.  Verify that all persons are standing at least 6 m {20 ft} away from the curtain air bag module.

13.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the curtain air bag module.

ac9uuw00009115
Warning
•  The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.

14.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Front pre-tensioner seat belt

1.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(4)  Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) as shown in the figure.

ac9wzw00004583

3.  Put the front pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

ac9wzw00004584
Warning
•  If the front pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the front pre-tensioner seat belt to the tire, verify that the pre-tensioner part is inside the tire.

4.  Stack the tire with the front pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the front pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

ac9wzw00004585

5.  Secure the tires with wire.

ac9uuw00009128

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the front pre-tensioner seat belt.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the front pre-tensioner seat belt.

ac9uuw00009115
Warning
•  The front pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the front pre-tensioner seat belt for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).


Rear Pre-tensioner Seat Belt

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(8)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

2.  Connect the SST (Adapter harness) as shown in the figure.

ac9wzw00004586

3.  Put the rear pre-tensioner seat belt inside the tire and secure it to the tire by wrapping a wire (cross section of 1.25 mm2{0.002 in2} or more) through the tire and the bolt installation holes at least 4 times.

ac9wzw00004587
Warning
•  If the rear pre-tensioner seat belt is not properly installed to the tire, serious injury may occur when the pre-tensioner part is operated (deployed). When installing the rear pre-tensioner seat belt to the tire, verify that the pre-tensioner part is inside the tire.

4.  Stack the tire with the rear pre-tensioner seat belt on to of two tires without wheels. Stack a tire without a wheel on top of the tire with the rear pre-tensioner seat belt, and then stack another tire with a wheel on the very top.

ac9wzw00004588

5.  Secure the tires with wire.

ac9uuw00009128

6.  Connect the SST (Deployment tool) to the SST (Adapter harness).

ac9uuw00009133

7.  Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.

8.  Verify that the red lamp on the SST (Deployment tool) is illuminated.

9.  Verify that all persons are standing at least 6 m {20 ft} away from the rear pre-tensioner seat belt.

10.  Press the activation switch on the SST (Deployment tool) to operate (deploy) the rear pre-tensioner seat belt.

ac9uuw00009115
Warning
•  The rear pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the rear pre-tensioner seat belt for at least 15 min after deployment.

11.  Disconnect the SST (Deployment tool) from the SST (Adapter harness).
