DTC U3003:16 [ACTIVE DRIVING DISPLAY] - MAZDA CX-9 TC 2016

DTC U3003:16 [ACTIVE DRIVING DISPLAY]

id0902r2999400

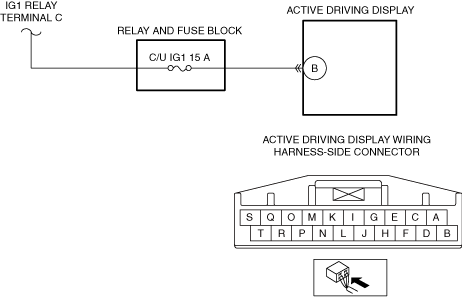

Without i-stop System

Description	Low power supply voltage input to active driving display
Detection condition	• Active driving display power supply circuit voltage of less than 10 V is detected.
Fail-safe	Not applicable
Possible cause	• DTCs are stored in the PCM. • Battery malfunction • Generator malfunction • Active driving display connector or terminal malfunction • Active driving display power supply circuit malfunction ? Short to ground in wiring harness between C/U IG1 15 A fuse and active driving display terminal B ? C/U IG1 15 A fuse malfunction ? Open circuit in wiring harness between IG1 relay terminal C and active driving display terminal B • Active driving display malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs • Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)].) • Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].)
1		No	Go to the next step.
2	INSPECT BATTERY • Inspect the battery. (See BATTERY INSPECTION.) • Is the battery normal?	Yes	Go to the next step.
2		No	Recharge or replace the battery, then go to Step 6. (See BATTERY RECHARGING.) (See BATTERY REMOVAL/INSTALLATION1.)
3	INSPECT GENERATOR • Inspect the generator. (See GENERATOR INSPECTION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) • Is the generator normal?	Yes	Go to the next step.
3		No	Replace the generator, then go to Step 6. (See GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].)
4	INSPECT ACTIVE DRIVING DISPLAY CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the active driving display connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 6.
5	VERIFY ACTIVE DRIVING DISPLAY POWER SUPPLY VOLTAGE • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Display the PID VPWR/VPWR_B using the M-MDS. (See PID/DATA MONITOR INSPECTION [ACTIVE DRIVING DISPLAY].) • Is the voltage B+?	Yes	Go to the next step.
5		No	Inspect the C/U IG1 15 A fuse. • If the fuse is blown: ? Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse and active driving display terminal B. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. • Replace the fuse. • If the fuse is damaged: ? Replace the fuse. • If the fuse is normal: ? Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and active driving display terminal B. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning location. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the active driving display using the M-MDS. (See CLEARING DTC [ACTIVE DRIVING DISPLAY].) • Retrieve the active driving display DTCs using the M-MDS. (See DTC INSPECTION [ACTIVE DRIVING DISPLAY].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the active driving display. (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [ACTIVE DRIVING DISPLAY].)
7		No	DTC troubleshooting completed.

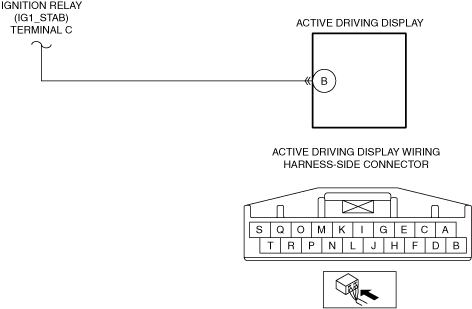

With i-stop System

Description	Low power supply voltage input to active driving display
Detection condition	• Active driving display power supply circuit voltage of less than 10 V is detected.
Fail-safe	Not applicable
Possible cause	• DTCs are stored in the PCM. • Battery malfunction • Generator malfunction • Active driving display connector or terminal malfunction • Short to ground in wiring harness between Ignition relay (IG1_STAB) terminal C and active driving display terminal B • Open circuit in wiring harness between Ignition relay (IG1_STAB) terminal C and active driving display terminal B • Active driving display malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs • Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)].) • Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].)
1		No	Go to the next step.
2	INSPECT BATTERY • Inspect the battery. (See BATTERY INSPECTION.) • Is the battery normal?	Yes	Go to the next step.
2		No	Recharge or replace the battery, then go to Step 7. (See BATTERY RECHARGING.) (See BATTERY REMOVAL/INSTALLATION1.)
3	INSPECT GENERATOR • Inspect the generator. (See GENERATOR INSPECTION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) (See GENERATOR INSPECTION [WITH i-ELOOP (SKYACTIV-G 2.5T)].) • Is the generator normal?	Yes	Go to the next step.
3		No	Replace the generator, then go to Step 7. (See GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)].) (See GENERATOR REMOVAL/INSTALLATION [WITH i-ELOOP (SKYACTIV-G 2.5T)].)
4	INSPECT ACTIVE DRIVING DISPLAY CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the active driving display connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 7.
5	INSPECT ACTIVE DRIVING DISPLAY CIRCUIT FOR SHORT TO GROUND • Remove the ignition relay (IG1_STAB). (See RELAY LOCATION.) • Verify that the active driving display connector is disconnected. • Inspect for continuity between ignition relay (IG1_STAB) terminal C (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between ignition relay (IG1_STAB) terminal C and active driving display terminal B. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to the next step.
5		No	Go to the next step.
6	INSPECT ACTIVE DRIVING DISPLAY CIRCUIT FOR OPEN CIRCUIT • Verify that the ignition relay (IG1_STAB) is removed. • Verify that the active driving display connector is disconnected. • Inspect for continuity between ignition relay (IG1_STAB) terminal C (wiring harness-side) and active driving display terminal B (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
6		No	Refer to the wiring diagram and verify whether or not there is a common connector between ignition relay (IG1_STAB) terminal C and active driving display terminal B. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to the next step.
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the active driving display using the M-MDS. (See CLEARING DTC [ACTIVE DRIVING DISPLAY].) • Retrieve the active driving display DTCs using the M-MDS. (See DTC INSPECTION [ACTIVE DRIVING DISPLAY].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the active driving display. (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.) Go to the next step.
7		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [ACTIVE DRIVING DISPLAY].)
8		No	DTC troubleshooting completed.
