WINDSHIELD WIPER DE-ICER INSPECTION

id091200020700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Disconnect the windshield wiper de-icer connector. (See COWL PANEL REMOVAL/INSTALLATION.)

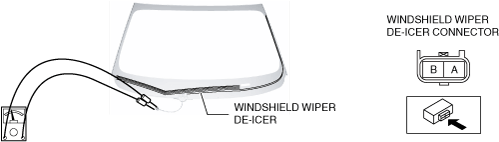

5.  Verify that the resistance and continuity between the windshield wiper de-icer terminals is as indicated in the table.

ac9wzw00004956

•  If not as indicated in the table, replace the windshield. (See WINDSHIELD REMOVAL.) (See WINDSHIELD INSTALLATION.)

ac9wzw00004957
