WINDSHIELD INSTALLATION

id091200000700

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Caution

•  If a door is opened or closed when all the window glass is closed, the resulting change in air pressure could cause the sealant to crack preventing the proper installation of the windshield. Keep the door glass opened until the windshield installation is completed.

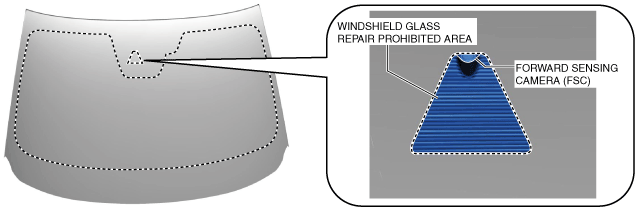

•  If there is damage or cracking in the windshield glass repair prohibited area, replace the windshield. If the damage or cracking in the windshield glass repair prohibited area is repaired, it could affect the recognition of the Forward Sensing Camera (FSC) and the system may not operate normally. (with FSC)

ac9wzw00005341

1.  Remove the sealant along the perimeter of the glass using a utility knife. (Reusing windshield)

2.  Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.

3.  Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

4.  Align the alignment marks made before removal and install the pin to the windshield referring to the figure. (Reusing windshield)

ac9wzw00004113

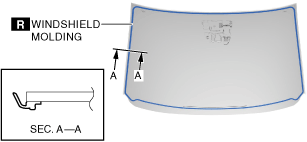

5.  Install the windshield molding.

ac9wzw00004854

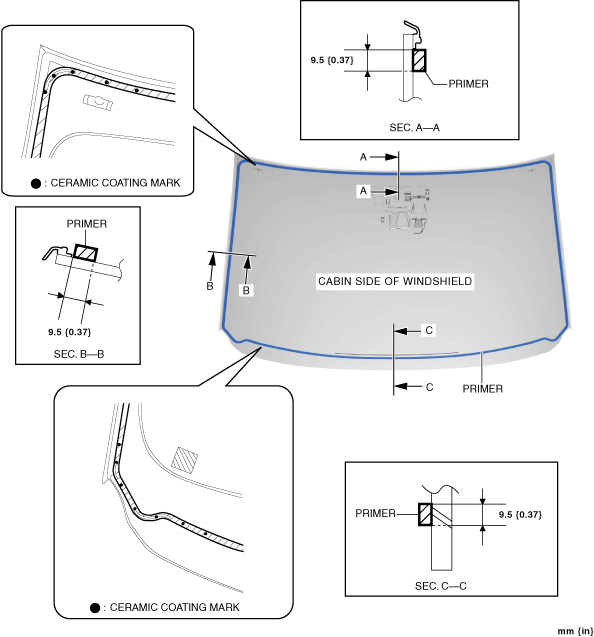

6.  Apply primer to the area of the glass shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

Note

•  Apply primer to the hollowed marks in the ceramic coating.

ac9wzw00004855

7.  Cut away the old sealant using a utility knife so that 1—2 mm {0.04—0.07 in}thickness of sealant remains along the perimeter of the frame.

aaxjjw00005152

8.  Clean and degrease along the perimeter of the bonding area on the body.

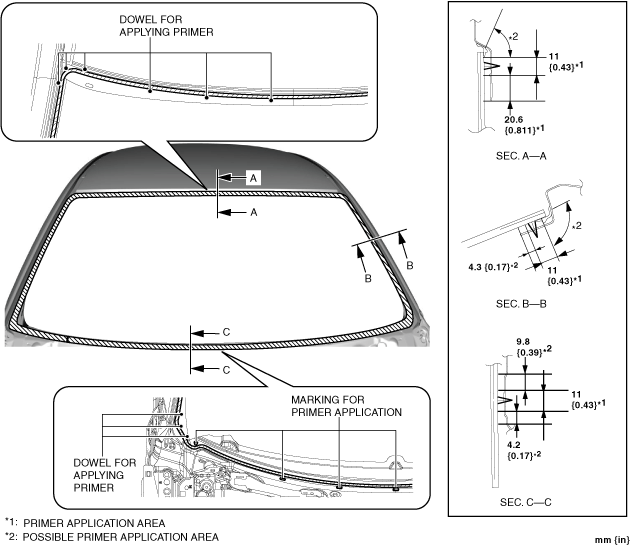

9.  Apply primer to the area of the body shown in the figure.

•  Follow the primer product instructions for the drying time.

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

ac9wzw00004856

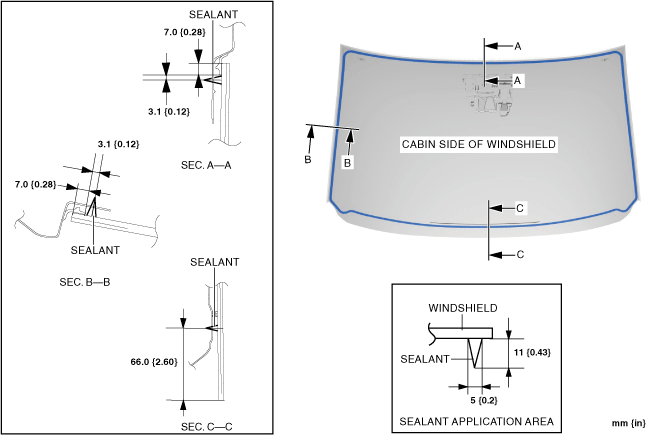

10.  Apply sealant to the area of the glass surface as shown in the figure.

ac9wzw00004114

11.  Insert the positioning pins to the body and install the windshield.

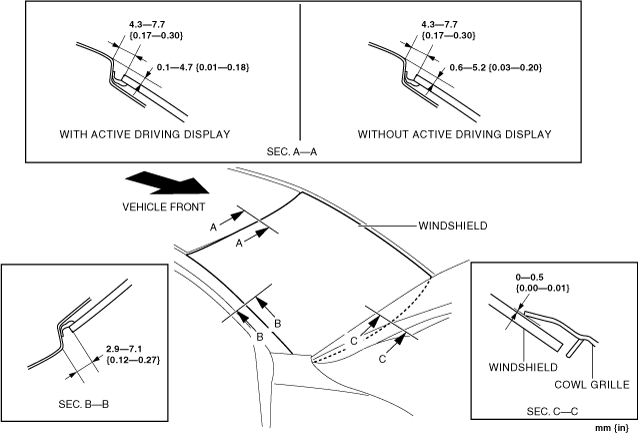

12.  Verify that the clearance between the A-pillar and the roof is within the range shown in the figure, and press along the perimeter of the glass.

ac9wzw00004857

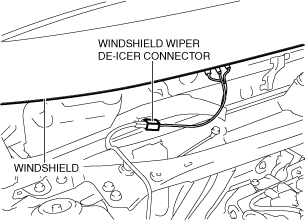

13.  Connect the windshield wiper de-icer connector. (with windshield wiper de-icer)

ac9wzw00003867

14.  Install the following parts:

(1)  Auto-dimming rearview mirror (with auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION.)

(2)  Rearview mirror (without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(3)  Laser sensor (with laser sensor) (See LASER SENSOR REMOVAL/INSTALLATION.)

(4)  Rain sensor (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

(5)  Forward sensing camera (FSC) Short-cord (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION.)

(6)  Forward sensing camera (FSC) clip (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION.)

(7)  Forward sensing camera (FSC) cover (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION.)

(8)  Forward sensing camera (FSC) (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

(9)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

(10)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(11)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(12)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(13)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(14)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(15)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(16)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

15.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

16.  Allow the sealant to harden completely.

Note

•  Follow the sealant product instructions for the drying time.

17.  Perform the forward sensing camera (FSC) aiming in the following cases. (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) AIMING.)

18.  If the rain sensor is replaced, perform the sensitivity setting procedure for the auto lights. (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
