BONNET LATCH REMOVAL/INSTALLATION

id091400006400

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2) Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(3) Horn (See HORN REMOVAL/INSTALLATION.)

(4) Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION.)

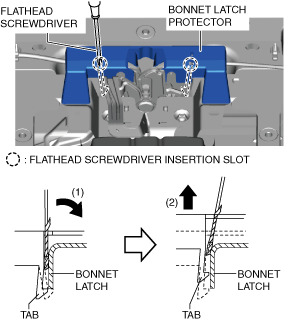

3. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac9wzw00003747

4. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the bonnet latch protector tab, and lift the tab up in the direction of arrow (2) and detach its tab from the bonnet latch.

5. Detach all the bonnet latch protector tabs from the bonnet latch and remove the bonnet latch protector.

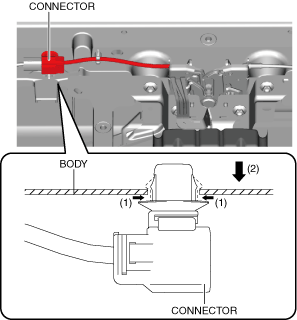

6. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the body.

ac9wzw00003748

7. Remove the connector from the body.

8. Disconnect the connector.

9. Disconnect the bonnet release cable.

ac9wzw00003749

10. Remove the bolts.

11. Remove the bonnet latch. (See Bonnet latch Installation Note.)

12. Install in the reverse order of removal.

Bonnet latch Installation Note

• Refer to [BONNET ADJUSTMENT] and adjust the bonnet latch so that the height difference and gap of the bonnet is within the specification. (See BONNET ADJUSTMENT.)

ac9wzw00003750
