TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION

id092000031200

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

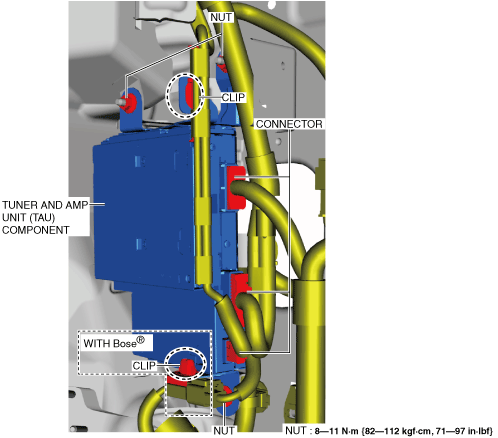

3.  Remove the nuts.

ac9wzw00004110

4.  Disconnect the connectors.

5.  Pull out the clips.

6.  Remove the tuner and amp unit (TAU) component.

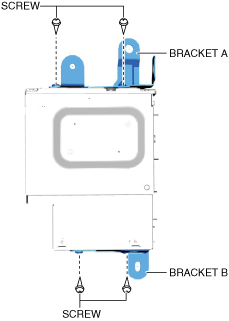

7.  Remove the screws.

ac9uuw00006170

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

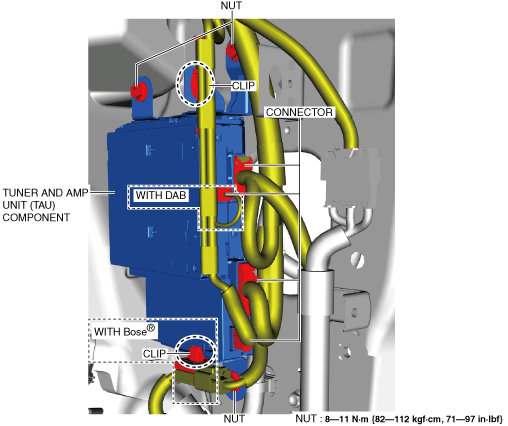

3.  Remove the nuts.

ac9wzw00004626

4.  Disconnect the connectors.

5.  Pull out the clip.

6.  Remove the tuner and amp unit (TAU) component.

7.  Remove the screws.

ac9uuw00006170

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.
