FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION

id091400510700

Fuel-filler Lid Opener

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (LH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(8)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2.  Remove the nut.

ac9uuw00005471

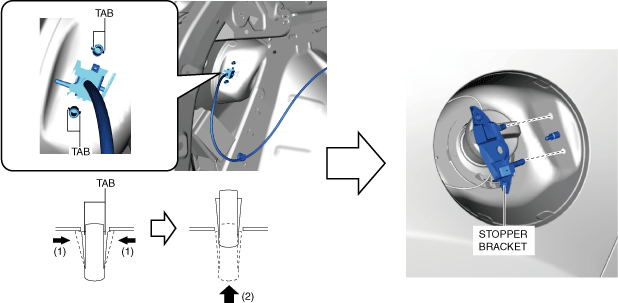

3.  While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

ac9uuw00005472

4.  Detach all the stopper bracket tabs from the body and remove the stopper bracket.

5.  Remove the fuel-filler lid opener in the direction of the arrow.

ac9uuw00005473

6.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

ac9uuw00005474

7.  Install in the reverse order of removal.

Fuel-filler Lid Opener Lever

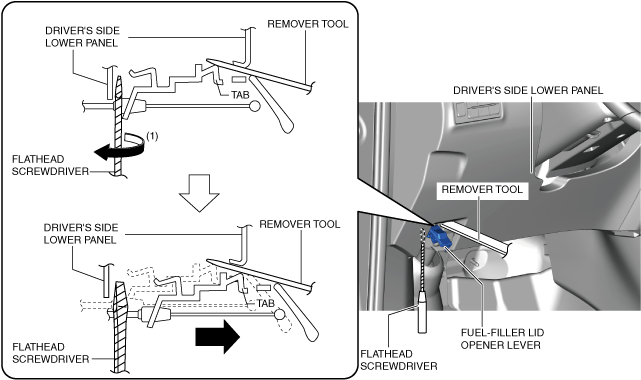

1.  While pulling the fuel-filler lid opener lever, insert a remover tool into the position shown in the figure.

ac9uuw00005475

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the fuel-filler lid opener lever from the driver’s side lower panel.

Caution

•  Remove the fuel-filler lid opener lever while being careful not to damage the bonnet release cable with the flathead screwdriver.

3.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener lever.

ac9uuw00005476

4.  Install in the reverse order of removal.
