BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION

id091400006600

Bonnet Release Lever

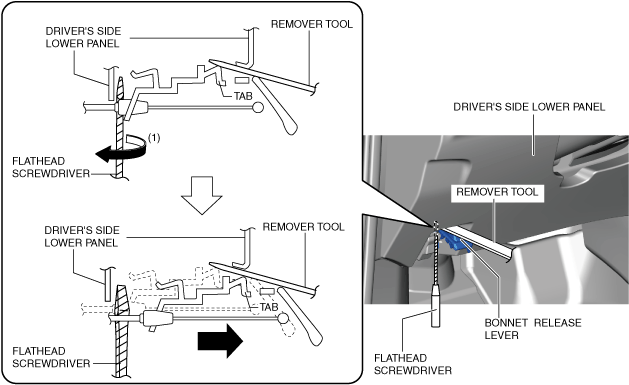

1. While pulling the bonnet release lever, insert a remover tool into the position shown in the figure.

ac9wzw00003770

2. Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the bonnet release lever from the driver’s side lower panel.

Caution

• Remove the bonnet release lever while being careful not to damage the bonnet release cable with the flathead screwdriver.

3. Disconnect the bonnet release cable from the bonnet release lever.

ac9wzw00003771

4. Install in the reverse order of removal.

Bonnet Release Cable

L.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Front deflector (Driver's side). (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

(2) Front over fender (Driver's side). (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(3) Front mudguard (Driver's side). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

(4) Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(5) Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(6) Front combination light (Driver's side) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(7) Bonnet latch protector (See BONNET LATCH REMOVAL/INSTALLATION.)

3. Disconnect the bonnet release cable from the bonnet latch.

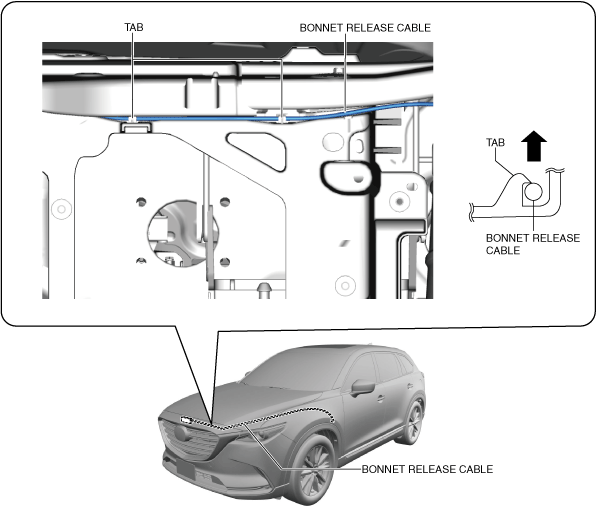

4. Remove the bonnet release cable from tabs.

ac9wzw00003772

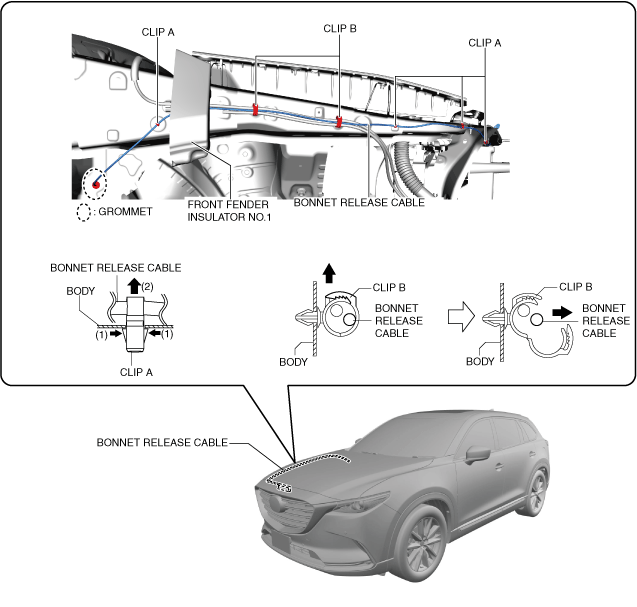

5. Remove the clips.

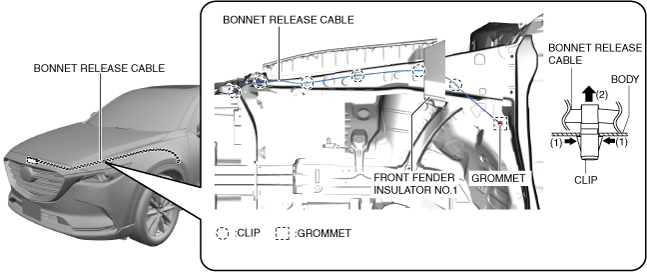

ac9wzw00003773

6. Remove the grommet.

7. Pull out the bonnet release cable from front fender insulator No.1.

8. Remove the bonnet release cable.

9. Install in the reverse order of removal.

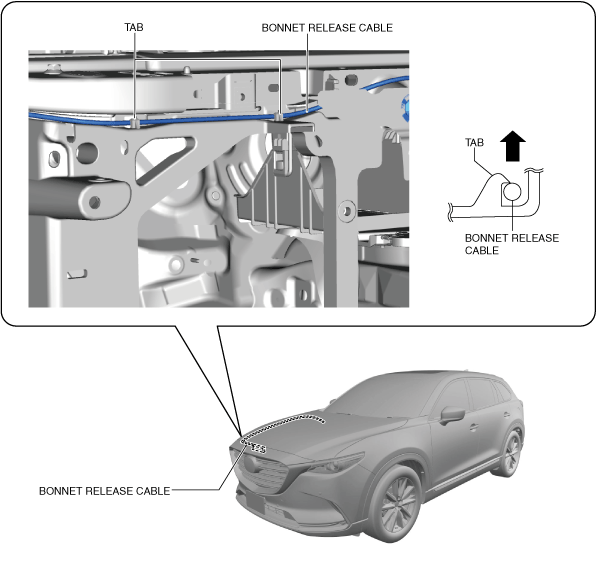

R.H.D.
