FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION

id092100000300

Front Wiring Harness Protector No.1

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

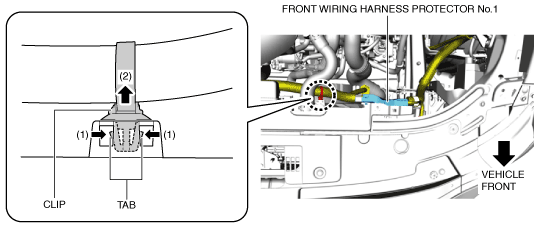

3.  While pressing the tabs of the clip in the direction of the arrows (1) shown in the figure, pull the clip in the direction of the arrow (2) shown in the figure to remove the clip from the radiator.

ac9uuw00005931

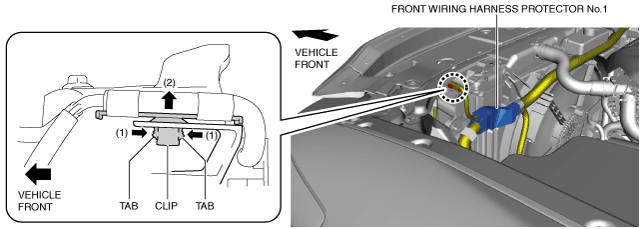

4.  While pressing the tabs of the clip in the direction of the arrows (1) shown in the figure, pull the clip in the direction of the arrow (2) shown in the figure to remove the clip from the shroud panel.

ac9uuw00005932

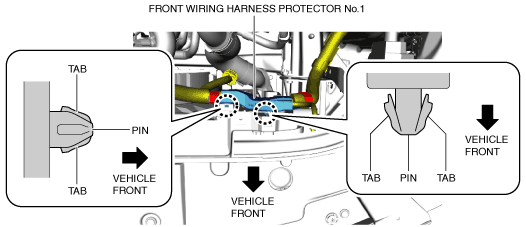

5.  Pull out the pins of the front wiring harness protector No.1 from the radiator.

ac9uuw00005933

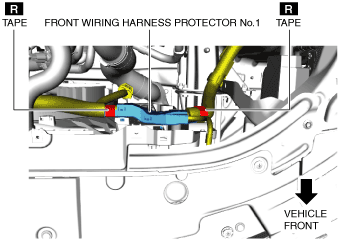

6.  Remove the tape.

ac9uuw00005934

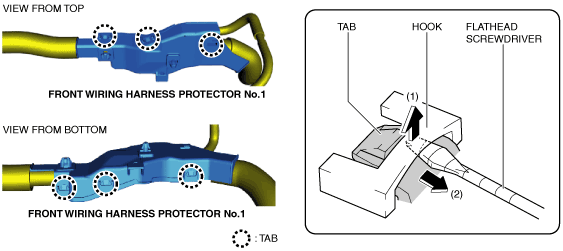

7.  While lifting up the hook in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull the tab in the direction of the arrow (2) shown in the figure to detach the tab from the hook.

ac9uuw00005935

8.  Detach all the tabs and hooks and remove the front wiring harness protector No.1.

9.  Install in the reverse order of removal.

Front Wiring Harness Protector No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Service plug (with i-ELOOP) (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

(2)  Terminal cover (with i-ELOOP) (See BATTERY REMOVAL/INSTALLATION.)

(3)  DC-DC converter (i-ELOOP) (with i-ELOOP) (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)

3.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION.)

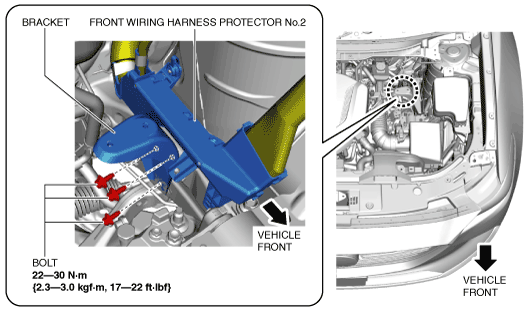

4.  Remove the bolts.

ac9uuw00005936

5.  Remove the bracket.

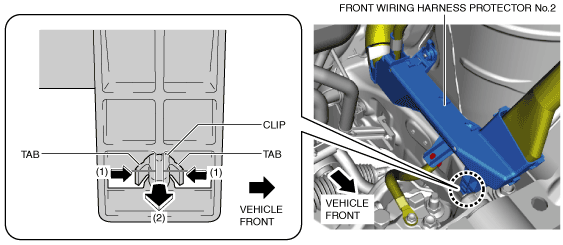

6.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to disconnect the clip from the body.

ac9uuw00005937

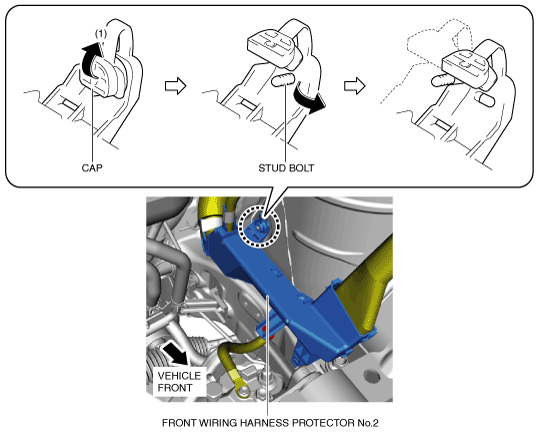

7.  Pull out the cap from the stud bolt in the direction of arrow (1) shown in the figure.

ac9uuw00005938

8.  Pull out the front wiring harness protector No.2 from the stud bolt and set it aside as shown in the figure.

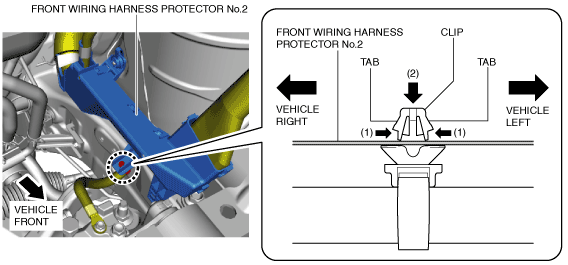

9.  While pressing the clip tabs in the direction of the arrows (1) shown in the figure, push the clip in the direction of the arrow (2) shown in the figure to remove the clip from the front wiring harness protector No.2.

ac9uuw00005939

10.  Remove the tape.

ac9uuw00005940

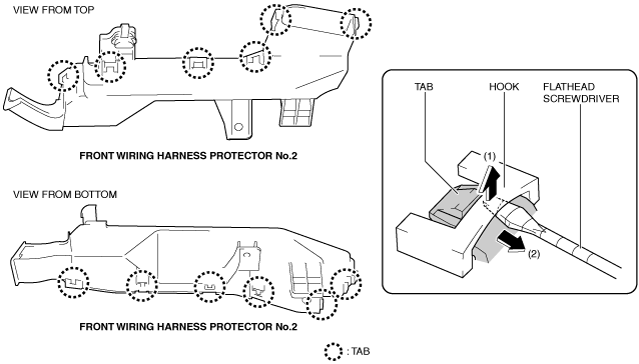

11.  While lifting up the hook in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull the tab in the direction of the arrow (2) shown in the figure to detach the tab from the hook.

ac9uuw00005941

12.  Detach all the tabs and hooks and remove the front wiring harness protector No.2.

13.  Install in the reverse order of removal.
