FRONT CAMERA INSPECTION

id152000009200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

(3)  Mascot base (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY.)

(4)  Front camera (See FRONT CAMERA REMOVAL/INSTALLATION.)

3.  Prepare four dry cell batteries (1.5 V)

4.  Connect the four dry cell batteries in a series.

ac5wzw00005108

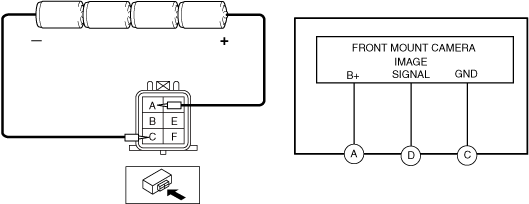

5.  Connect the positive pole of the dry cell battery to front camera terminal A, and the negative pole to terminal C.

ac8wzw00002216

6.  With the cell batteries being connected, measure the waveform between front camera terminal C and terminal D.

7.  Verify that waveform A shown in the figure is displayed two times or more.

ac8wzw00002217

•  If the voltage is not as shown in the figure, replace the front camera. (See FRONT CAMERA REMOVAL/INSTALLATION.)
