REAR BLOWER MOTOR REMOVAL/INSTALLATION

id071100010200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Selector lever component (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(8)  Selector lever bracket (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

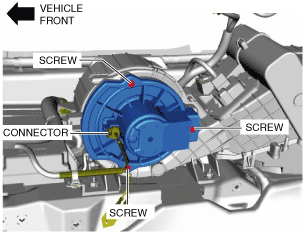

3.  Disconnect the connector.

ac9uuw00007487

4.  Remove the screws.

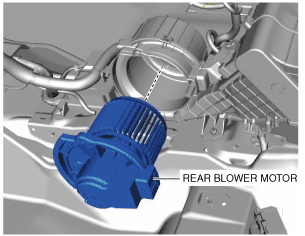

5.  Remove the rear blower motor.

ac9uuw00007488

6.  Install in the reverse order of removal.
