REAR AIRFLOW MODE ACTUATOR INSPECTION

id074000804700

1.  Slide the front seat (RH) forward.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

4.  Remove the rear airflow mode actuator. (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)

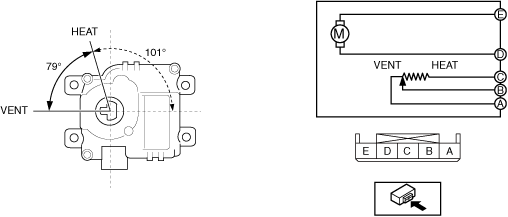

5.  Apply battery positive voltage and connect the ground to the rear airflow mode actuator terminals as indicated in the table below and verify the operation condition.

ac9wzw00005021

6.  Verify that the resistance between terminals A and B, B and C matches the rear airflow mode actuator operation as shown in the graph.

ac9wzw00004087

•  If the operation condition and resistance are not normal, replace the rear airflow mode actuator. (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)
