REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION

id074000806000

1.  Slide the front seat (RH) forward.

2.  Slide the front seat (RH) rearward approx. 50 mm {2.0 in}.

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

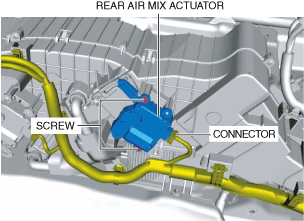

ac9wzw00003715

6.  Remove the screws.

7.  Remove the rear air mix actuator.

8.  Install in the reverse order of removal.
