DTC B113E:11 [REAR BODY CONTROL MODULE (RBCM)] - MAZDA CX-9 TC 2016

DTC B113E:11 [REAR BODY CONTROL MODULE (RBCM)]

id0902p4013700

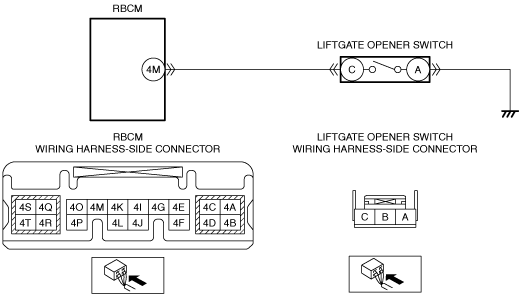

Without Power Liftgate (PLG) System

Description	Liftgate opener switch circuit malfunction
Detection condition	• Rear body control module (RBCM) detects a short to ground in the liftgate opener switch circuit
Fail-safe	Not applicable
Possible cause	• Liftgate opener switch connector or terminal malfunction • Liftgate opener switch malfunction • Rear body control module (RBCM) connector or terminal malfunction • Short to ground in wiring harness between rear body control module (RBCM) terminal 4M and liftgate opener switch terminal C • Rear body control module (RBCM) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY REAR BODY CONTROL MODULE (RBCM) DTCs AGAIN • Clear the DTC for the rear body control module (RBCM) using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Retrieve the rear body control module (RBCM) DTCs using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is the same DTC displayed?	Yes	Go to the next step.
1		No	Go to Step 7.
2	INSPECT LIFTGATE OPENER SWITCH CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the liftgate opener switch connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 6.
3	INSPECT LIFTGATE OPENER SWITCH • Inspect the liftgate opener switch. (See LIFTGATE OPENER SWITCH INSPECTION.) • Is the liftgate opener switch normal?	Yes	Go to the next step.
3		No	Replace the liftgate opener switch, then go to Step 6. (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
4	INSPECT REAR BODY CONTROL MODULE (RBCM) CONNECTOR CONDITION • Disconnect the rear body control module (RBCM) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 6.
5	INSPECT LIFTGATE OPENER SWITCH CIRCUIT FOR SHORT TO GROUND • Verify that the liftgate opener switch and rear body control module (RBCM) connectors are disconnected. • Inspect for continuity between liftgate opener switch terminal C (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between rear body control module (RBCM) terminal 4M and liftgate opener switch terminal C. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to the next step.
5		No	Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the rear body control module (RBCM) using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Retrieve the rear body control module (RBCM) DTCs using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR BODY CONTROL MODULE (RBCM)].)
7		No	DTC troubleshooting completed.

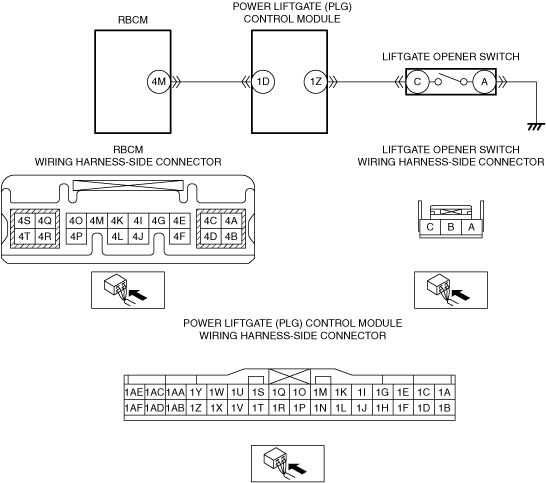

With Power Liftgate (PLG) System

Description	Liftgate opener switch circuit malfunction
Detection condition	• Rear body control module (RBCM) detects a short to ground in the liftgate opener switch signal circuit
Fail-safe	Not applicable
Possible cause	• Power liftgate (PLG) control module connector or terminal malfunction • Power liftgate (PLG) control module malfunction • Rear body control module (RBCM) connector or terminal malfunction • Short to ground in wiring harness between rear body control module (RBCM) terminal 4M and power liftgate (PLG) control module terminal 1D • Rear body control module (RBCM) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY REAR BODY CONTROL MODULE (RBCM) DTCs AGAIN • Clear the DTC for the rear body control module (RBCM) using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Retrieve the rear body control module (RBCM) DTCs using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is the same DTC displayed?	Yes	Go to the next step.
1		No	Go to Step 8.
2	VERIFY POWER LIFTGATE (PLG) CONTROL MODULE DTCs • Clear the DTC for the power liftgate (PLG) control module using the M-MDS. (See CLEARING DTC [POWER LIFTGATE (PLG) CONTROL MODULE].) • Retrieve the power liftgate (PLG) control module DTCs using the M-MDS. (See DTC INSPECTION [POWER LIFTGATE (PLG) CONTROL MODULE].) • Is any DTC displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting, then go to Step 7. (See DTC TABLE [POWER LIFTGATE (PLG) CONTROL MODULE].)
2		No	Go to the next step.
3	INSPECT POWER LIFTGATE (PLG) CONTROL MODULE CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the power liftgate (PLG) control module connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector, then go to Step 7.
4	INSPECT POWER LIFTGATE (PLG) CONTROL MODULE • Inspect the power liftgate (PLG) control module. (See POWER LIFTGATE (PLG) CONTROL MODULE INSPECTION.) • Is the power liftgate (PLG) control module normal?	Yes	Go to the next step.
4		No	Replace the power liftgate (PLG) control module, then go to Step 7. (See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.)
5	INSPECT REAR BODY CONTROL MODULE (RBCM) CONNECTOR CONDITION • Disconnect the rear body control module (RBCM) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to Step 7.
6	INSPECT LIFTGATE OPENER SWITCH SIGNAL CIRCUIT FOR SHORT TO GROUND • Verify that the power liftgate (PLG) control module and rear body control module (RBCM) connectors are disconnected. • Inspect for continuity between power liftgate (PLG) control module terminal 1D (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between rear body control module (RBCM) terminal 4M and power liftgate (PLG) control module terminal 1D. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the rear body control module (RBCM) using the M-MDS. (See CLEARING DTC [REAR BODY CONTROL MODULE (RBCM)].) • Retrieve the rear body control module (RBCM) DTCs using the M-MDS. (See DTC INSPECTION [REAR BODY CONTROL MODULE (RBCM)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.) Go to the next step.
7		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR BODY CONTROL MODULE (RBCM)].)
8		No	DTC troubleshooting completed.
