LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION

id091400516100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (with power liftgate) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

(7)  Rear finisher (See REAR FINISHER REMOVAL.)(See REAR FINISHER INSTALLATION.)

3.  Disconnect the connector.

ac9wzw00003761

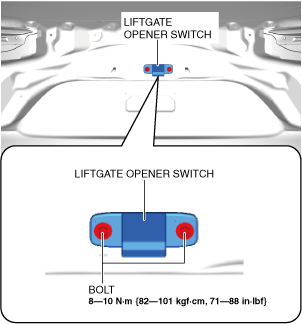

4.  Remove the bolts.

ac9wzw00003762

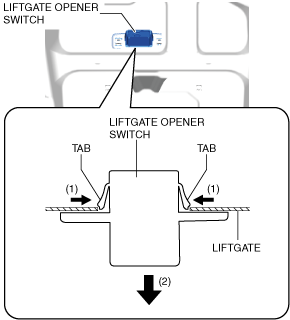

5.  While pressing the liftgate opener switch tabs in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the liftgate opener switch tabs from the liftgate.

ac9uuw00005510

6.  Remove the liftgate opener switch from the liftgate.

7.  Install in the reverse order of removal.
