SECOND-ROW SEAT BACK FRAME REMOVAL/INSTALLATION

id091300967900

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Second-row seat(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

(2)  Second-row seat cushion(See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Second-row seat side cover(See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

(4)  Second-row center buckle(See SECOND-ROW BUCKLE REMOVAL/INSTALLATION.)

(5)  Second-row seat back component(See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

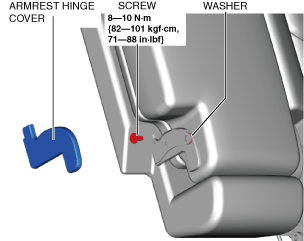

3.  Remove the armrest hinge cover.

ac9uuw00009869

4.  Remove the screw and washer.

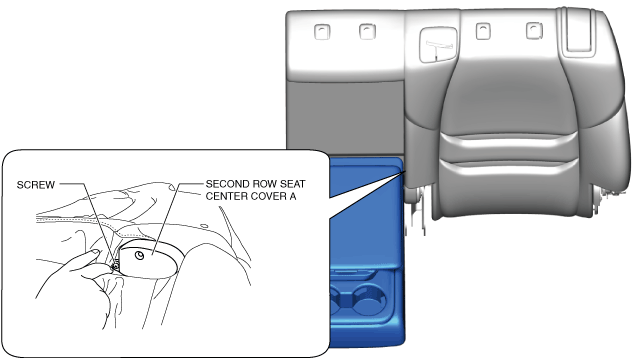

5.  Remove the screw.

ac9wzw00005547

6.  Remove second-row seat center cover B.

ac9uuw00009788

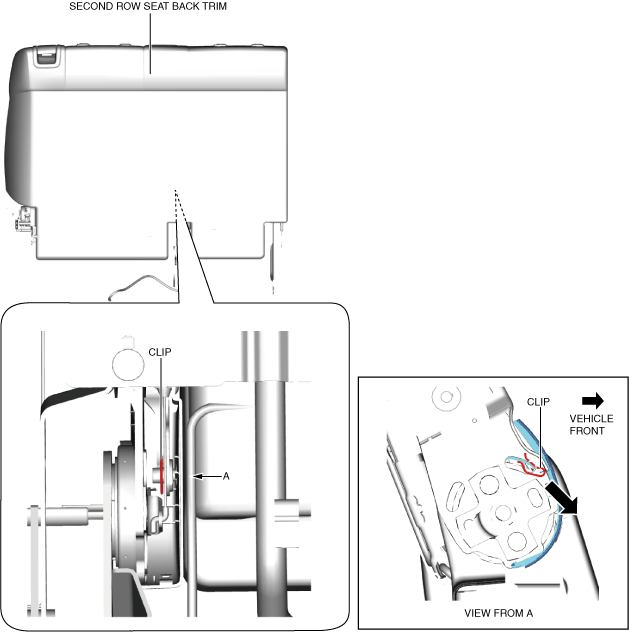

7.  Remove the clip in the direction of the arrow shown in the figure.

ac9uuw00009789

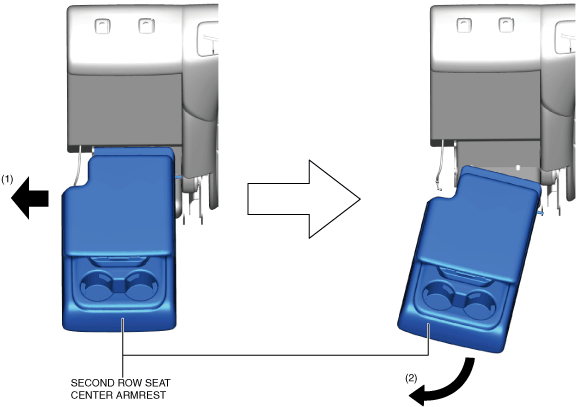

8.  Move the second-row seat center armrest in the order of arrows (1),(2) shown in the figure and remove it.

ac9uuw00009790

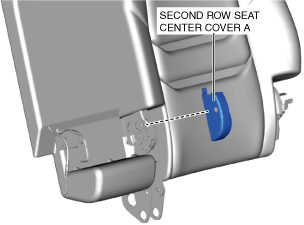

9.  Remove second-row seat center cover A.

ac9uuw00009792

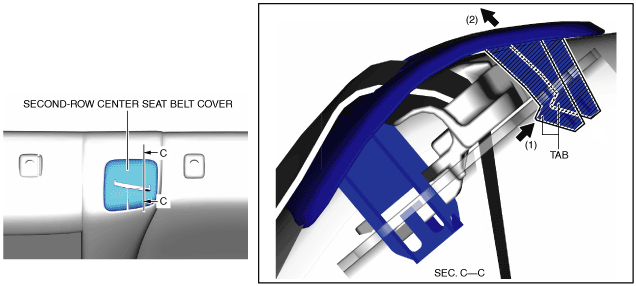

10.  While pressing the second-row center seat belt cover tabs in the direction of arrows (1) shown in the figure, move the second-row center seat belt cover in the direction of arrows (2) and detach the second-row center seat belt cover tabs from the second-row seat back frame.

atrizt00000067

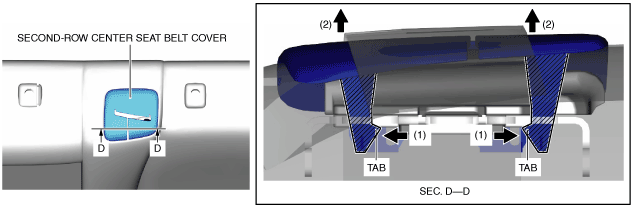

11.  While pressing the second-row center seat belt cover tabs in the direction of arrows (1) shown in the figure, move the second-row center seat belt cover in the direction of arrows (2) and detach the second-row center seat belt cover tabs from the second-row seat back frame.

atrizt00000068

12.  Remove the second-row center seat belt cover.

13.  Remove the cover and then remove the screws.

ac9uuw00009696

14.  Release the pole guide tabs in the direction of arrows (1) shown in the figure, then pull the pole guide out in the direction of arrow (2).

ac9uuw00007075

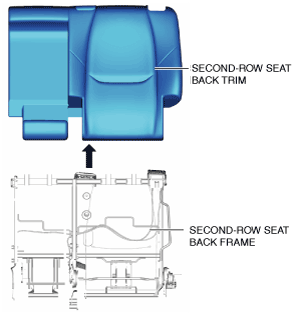

15.  Lift up the second-row seat back trim and second-row seat back pad as a single unit and remove it from the second-row seat back frame.

ac9uuw00009477

16.  Install in the reverse order of removal.
