REQUEST SWITCH INSPECTION

id091400515400

Driver's Door/Passenger's Door

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(3)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(4)  Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

(5)  Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

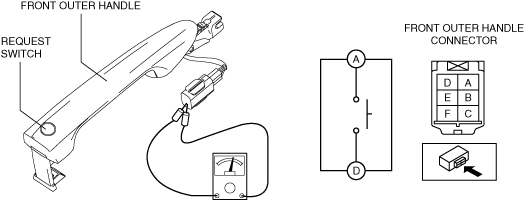

4.  Verify that the continuity is as indicated in the table.

ac9uuw00009440

ac9uuw00009441

•  If not as indicated in the table, replace the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

Liftgate

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

(7)  Request switch (liftgate) (See REQUEST SWITCH REMOVAL/INSTALLATION.)

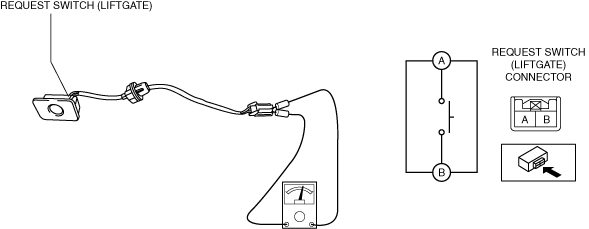

3.  Verify that the continuity is as indicated in the table.

ac9uuw00009442

ac9uuw00009443

•  If not as indicated in the table, replace the request switch. (See REQUEST SWITCH REMOVAL/INSTALLATION.)
