REAR FINISHER REMOVAL

id091600968900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

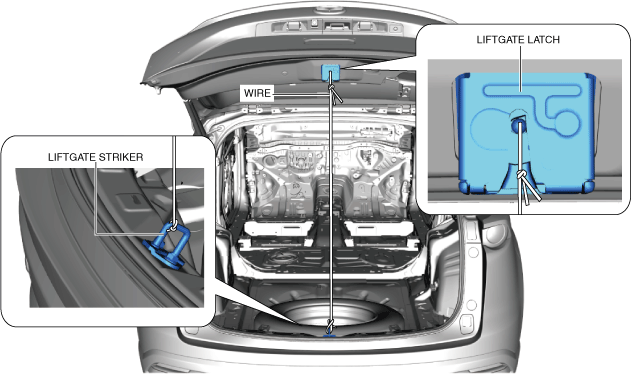

3.  Attach a piece of wire between the liftgate striker and liftgate latch to hold the liftgate in the half-opened position as shown below.

ac9wzw00004449

4.  Remove the liftgate garnish. (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

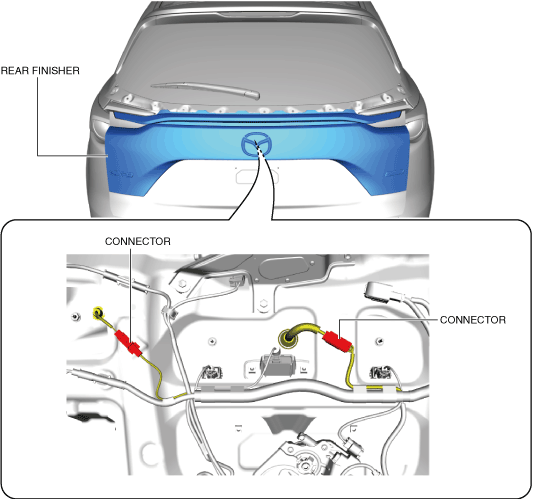

5.  Disconnect the rear mount camera connector. (With rear mount camera)

ac9uuw00007026

6.  Disconnect the request switch connector. (With advanced keyless entry system)

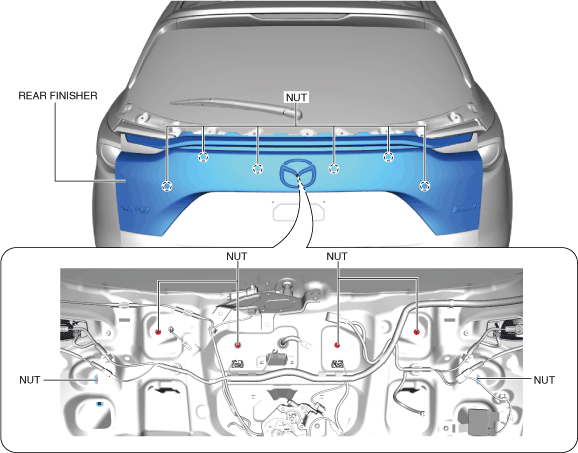

7.  Remove the nuts.

ac9uuw00007027

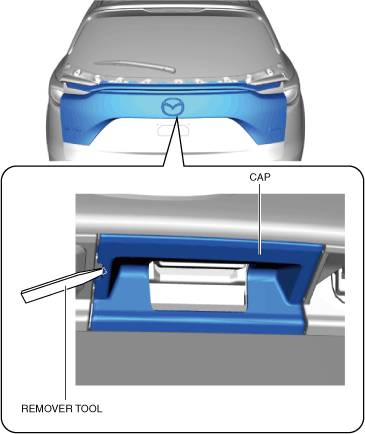

8.  Insert the remover tool in the position shown in the figure.

ac9wzw00003949

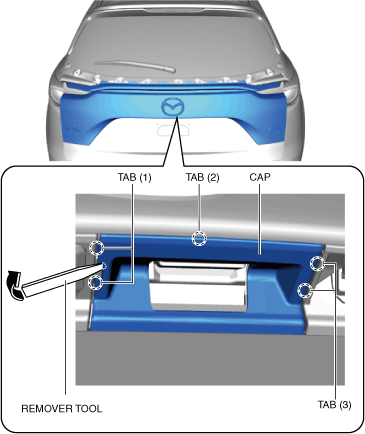

9.  Move the remover tool in the direction of the arrow shown in the figure and detach the cap while detaching tab (1), (2) and (3).

ac9uuw00007028

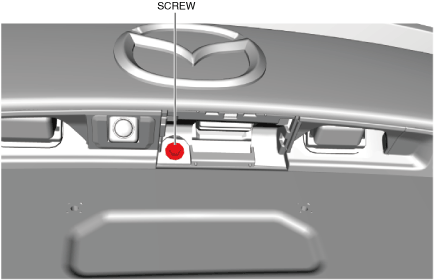

10.  Remove the screw.

ac9uuw00007029

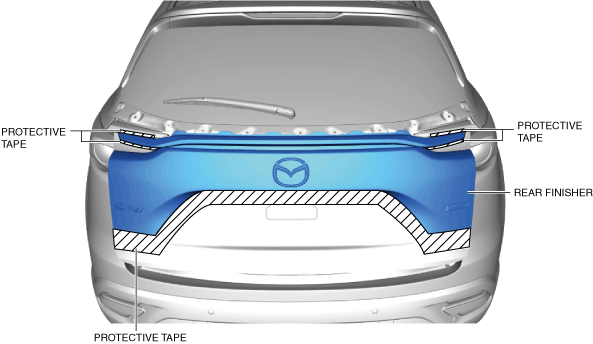

11.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

ac9uuw00007030

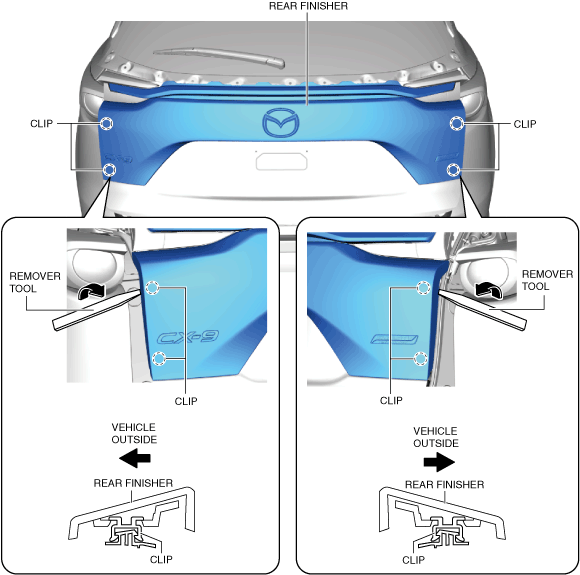

12.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrows and detach the clips.

ac9uuw00007031

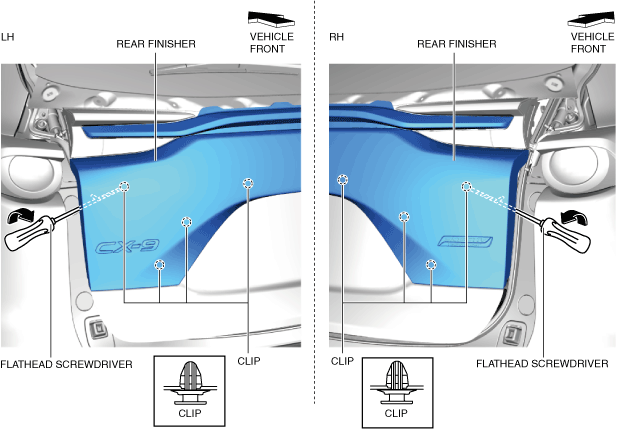

13.  Insert the flathead screwdriver in the position shown in the figure and detach the rear finisher clips.

ac9uuw00007032

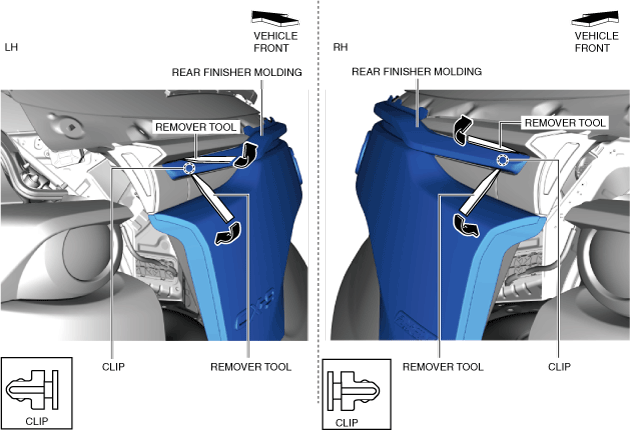

14.  Insert remover tool into the position shown in the figure, and detach the rear finisher molding clips from the liftgate.

ac9uuw00007033

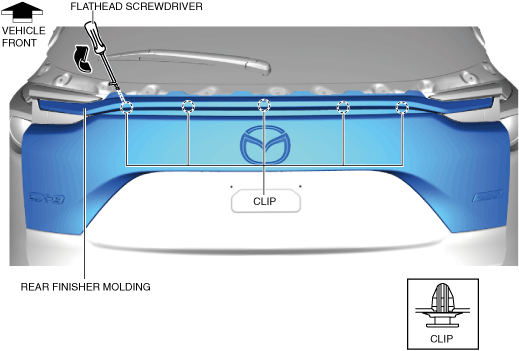

15.  Insert the flathead screwdriver in the position shown in the figure and detach the rear finisher molding clips.

ac9uuw00007034

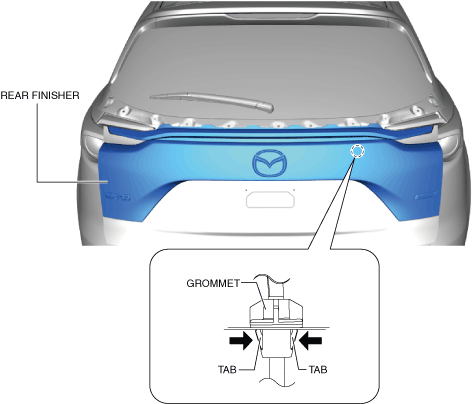

16.  While holding the rear finisher by hand, press the tabs of the grommet from the underside of the liftgate shown in the figure, and disengage the grommet tabs from the liftgate. (With advanced keyless entry system)

ac9wzw00003950

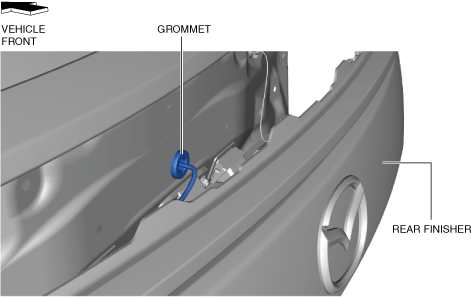

17.  Pull the wiring harness out of the vehicle body. (With rear mount camera)

ac9wzw00003951

18.  Remove the rear finisher and the rear finisher molding as a single unit.

19.  Remove the request switch. (With advanced keyless entry system) (See REQUEST SWITCH REMOVAL/INSTALLATION.)

20.  Remove the rear mount camera. (With rear mount camera) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)

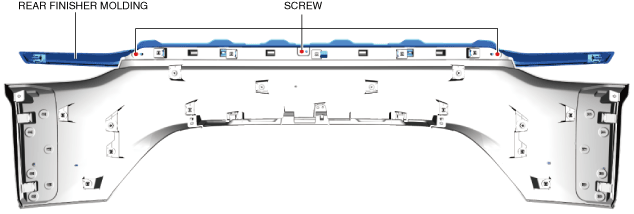

21.  Remove the screws.

ac9uuw00007035

22.  Remove the rear finisher molding.

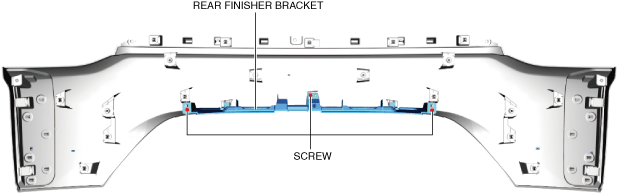

23.  Remove the screws.

ac9uuw00007036

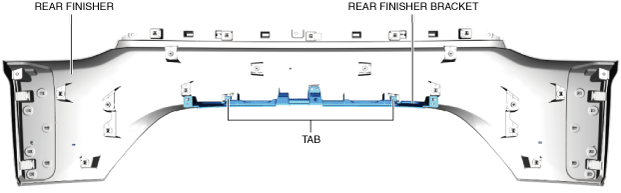

24.  Detach the rear finisher bracket tabs from the rear finisher.

ac9uuw00007037

25.  Remove the rear finisher bracket.
