REAR MOUNT CAMERA REMOVAL/INSTALLATION

id092000814900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (with power liftgate) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Rear finisher (See REAR FINISHER REMOVAL.) (See REAR FINISHER INSTALLATION.)

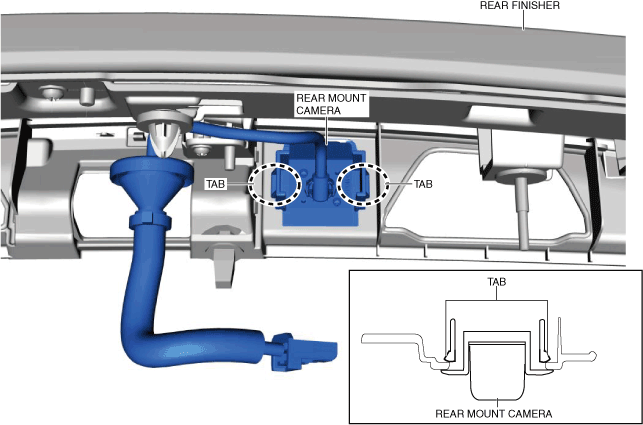

3.  Remove the rear mount camera while detaching the tabs of the rear finisher.

ac9wzw00003377

4.  Install in the reverse order of removal.

5.  Perform the parking assist system initialization (calibration). (type displaying predicted vehicle track) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)

6.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
