DASHBOARD DISASSEMBLY/ASSEMBLY
id091700600400
-
Warning
-
• Handling the passenger-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See
AIR BAG SYSTEM SERVICE WARNINGS.) (See
AIR BAG SYSTEM SERVICE CAUTIONS.)

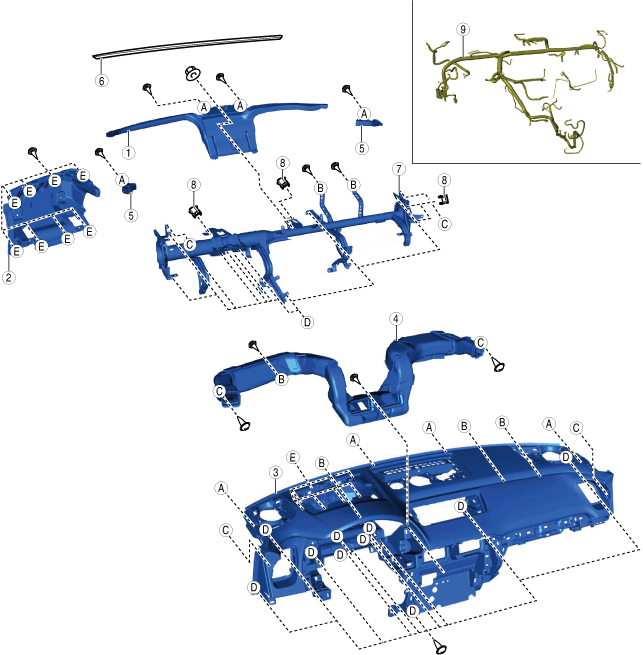

Dashboard Component
1. Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
|
1
|
Center defroster
|
|
2
|
Dashboard box
|
|
3
|
Dashboard pad
|
|
4
|
Duct
|
|
5
|
Side defroster
|
|
6
|
Seal tape
|
|
7
|
Dashboard member
|
|
8
|
Member junction
|
|
9
|
Wiring harness
|
3. When replacing the dashboard, remove the following parts:
- (1) Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
-
- (2) Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
-
- (3) Front side speaker (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION.)
-
- (4) Front center speaker (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)
-
- (5) Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
-
- (6) Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
-
- (7) Parking assist unit (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)
-
- (8) Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
-
- (9) GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.)
-
- (10) Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
-
4. Assemble in the reverse order of disassembly.

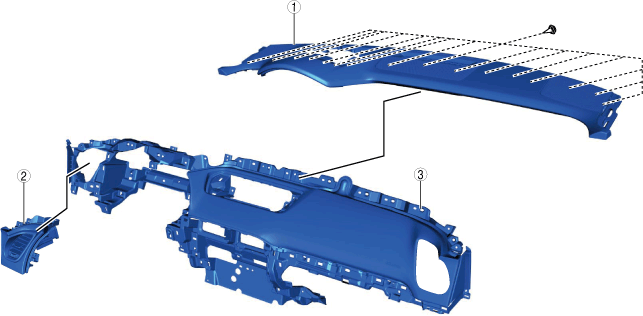

Dashboard Pad
1. Disassemble in the order indicated in the table.
|
1
|
Dashboard pad upper
|
|
2
|
Dashboard panel
|
|
3
|
Dashboard pad lower
|
2. Assemble in the reverse order of disassembly.
