GPS ANTENNA FEEDER REMOVAL/INSTALLATION

id092000812100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(6)  Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(7)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(8)  Front center speaker (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

(9)  Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)

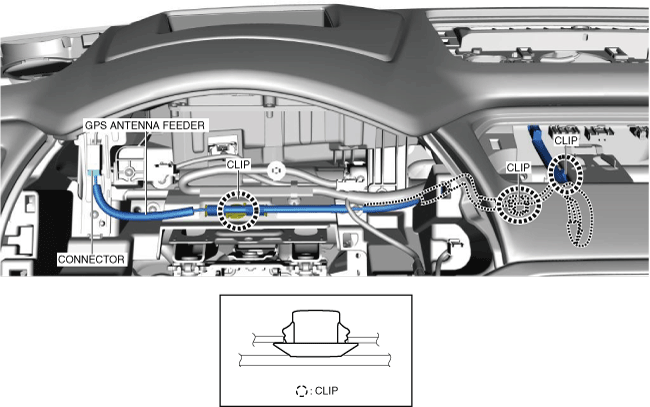

3.  Remove the clips in the position shown in the figure.

ac9uuw00007751

4.  Disconnect the connector.

5.  Remove the GPS antenna feeder.

6.  Install in the reverse order of removal.
