REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION

id091800025100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

2.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

3.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

4.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

5.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Detach the entire trunk side trim from the body. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Move the trunk side trim in the direction of the arrow and secure an operation space.

ac9uuw00007106

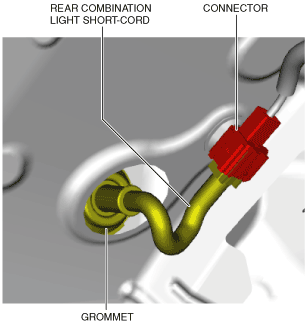

5.  Disconnect the connector.

ac9uuw00007107

6.  Press the grommet to the outside from inside the body.

7.  Remove the rear combination light short-cord.

8.  Install in the reverse order of removal.
