REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD]

id0415008001a1

1.  Switch the ignition ON (engine off).

2.  Release the electric parking brake.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(8)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

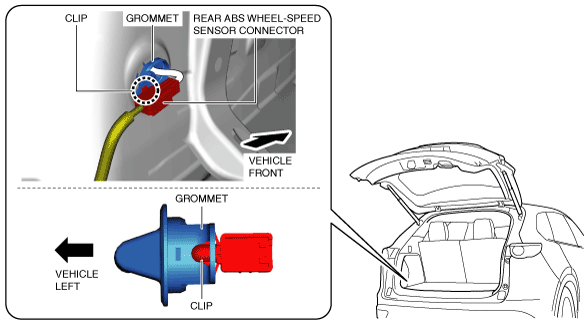

6.  Disconnect the rear ABS wheel-speed sensor connector and remove the clip.

ac9uuw00009700

7.  Press the grommet tabs in the direction of arrows (1) shown in the figure and detach them from the vehicle body.

ac9uuw00009526

8.  Press the grommet in the direction of arrow (2) shown in the figure and press out the rear ABS wheel-speed sensor toward the outside of the vehicle.

9.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

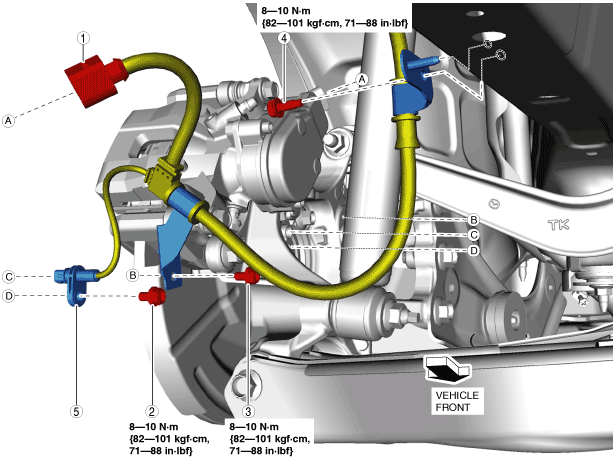

10.  Remove in the order indicated in the table.

11.  Install in the reverse order of removal.

12.  After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.

ac9uuw00009527

Rear ABS Wheel-speed Sensor Removal Note

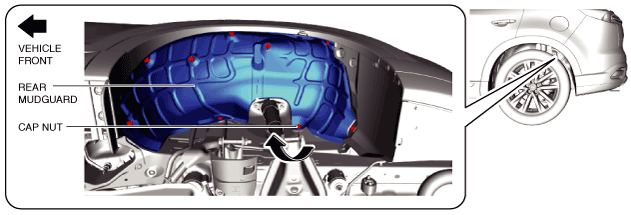

1.  Remove the cap nut.

ac9uuw00009701

2.  Peel back the rear mudguard and remove the rear ABS wheel-speed sensor.
