DTC U3003:16 [ELECTRIC POWER STEERING (EPS)]
id0602a1812800
DTC U3003:16
|
Battery power supply
|
DETECTION CONDITION
|
• Voltage of 8 V or less detected by EPS control module internal ignition voltage observation.
|
FAIL-SAFE FUNCTION
|
• Refer to “Fail-safe Function Table”. (See DTC TABLE [ELECTRIC POWER STEERING (EPS)].)
|
POSSIBLE CAUSE
|
• Battery and/or generator malfunction
• EPAS 60A fuse malfunction

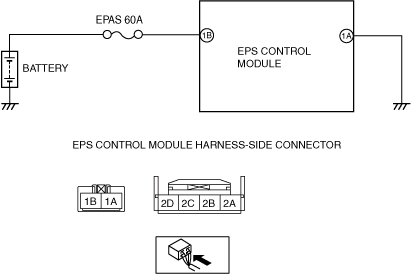

• Malfunction in the wiring harness between EPS control module terminal 1B and battery
• Open circuit in the wiring harness between EPS control module terminal 1A and body ground
|
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
INSPECT BATTERY VOLTAGE
• Is the battery terminal voltage normal?
(See BATTERY INSPECTION.)
|
Yes
|
Make sure that battery terminal connection is okay.
Go to the next step.
|
No
|
Charge or replace the battery, then go to Step 7.
(See BATTERY RECHARGING.)
(See BATTERY REMOVAL/INSTALLATION.)
|
||
2
|
INSPECT BATTERY GRAVITY
• Is the battery specific gravity as specified?
(See BATTERY INSPECTION.)
|
Yes
|
Go to the next step.
|
No
|
Replace the battery, then go to Step 7.
(See BATTERY REMOVAL/INSTALLATION.)
|
||
3
|
INSPECT CHARGING SYSTEM
• Are the generator and drive belt tension normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the generator and/or drive belt if necessary.
Go to Step 7.
|
||
4
|
INSPECT FUSE CONDITION
• Is the fuse (EPAS 60A) normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the fuse, then go to Step 7.
|
||
5
|
INSPECT EPS CONTROL MODULE POWER SUPPLY CIRCUIT FOR OPEN OR SHORT CIRCUIT
• Start the engine.
• Measure the voltage between following EPS control module terminal (wiring harness-side) and ground.
• Is the voltage 8 V or more?
|
Yes
|
Go to the next Step.
|
No
|
Repair or replace the wiring harness (including fuse) between the EPS control module and ground, then go to Step 7.
|
||
6
|
INSPECT EPS CONTROL MODULE GROUND CIRCUIT FOR POOR GROUND OR OPEN CIRCUIT
• Switch the ignition OFF.
• Inspect for continuity between EPS control module terminal 1A and body ground.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness between terminal 1A and body ground, then go to the next step.
|
||
7
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Using the M-MDS, clear the DTC from the EPS control module.
• Using the M-MDS, perform the EPS control module DTC inspection.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step1.
If the malfunction recurs, replace the EPS control module, then go to the next step.
|
No
|
Go to the next step.
|
||
8
|
VERIFY NO DTC IS PRESENT
• Are any DTCs present?
|
Yes
|
Go to applicable DTC inspection.
|
No
|
DTC troubleshooting completed.
|
