THEFT-DETERRENT HORN REMOVAL/INSTALLATION

id091400517500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(8)  Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

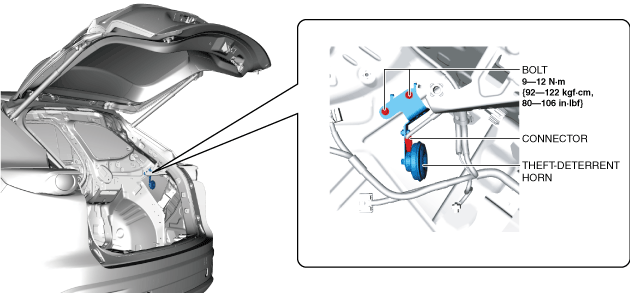

3.  Disconnect the connector.

ac9uuw00005601

4.  Remove the bolts.

5.  Remove the theft-deterrent horn.

6.  Install in the reverse order of removal.
