D-PILLAR TRIM REMOVAL/INSTALLATION


id091700603100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
(8)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Lower anchor installation bolt on the third-row seat belt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

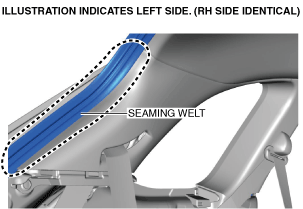

3.  Partially peel back the seaming welt.

ac9wzw00004808

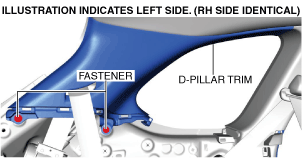

4.  Remove the fasteners.

ac9wzw00004809

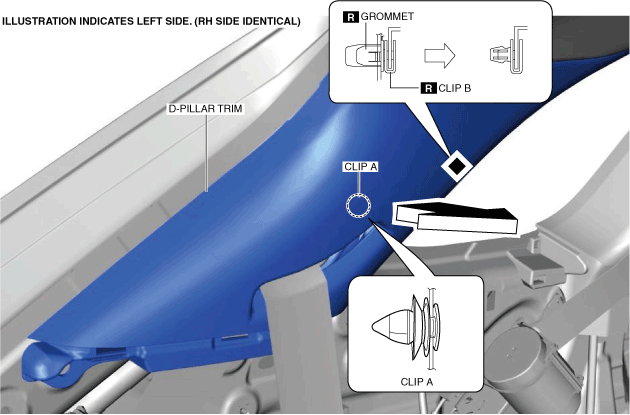

5.  Pull the D-pillar trim in the direction of the arrow while detaching clip A.

ac9uuw00005639

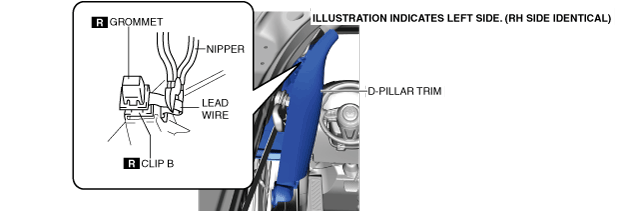

6.  Cut the lead wire connecting clip B and grommet using a nipper.

ac9uuw00005640

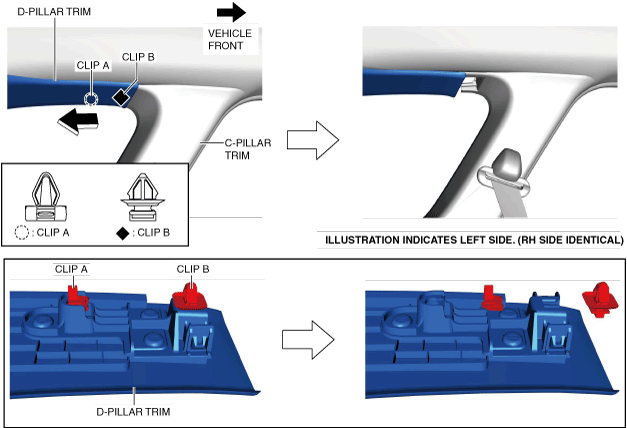

7.  Slide the D-pillar trim in the direction of the arrow shown in the figure and detach clip A and B from the body panel.

ac9uuw00007456

8.  Remove the D-pillar trim.

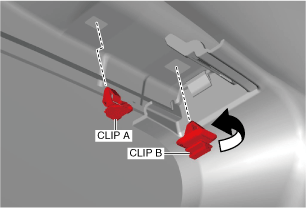

9.  Remove the clip A.

ac9uuw00007457

10.  Rotate the clip B in the direction of the arrow shown in the figure and remove it.

11.  Install the clip A and clip B to the D-pillar trim.

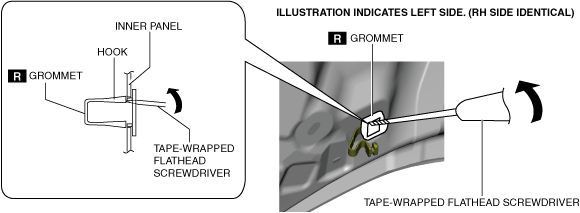

12.  Move the hook in the direction of arrow shown in the figure using a tape-wrapped flathead screwdriver and detach it from the inner panel.

ac9uuw00005996

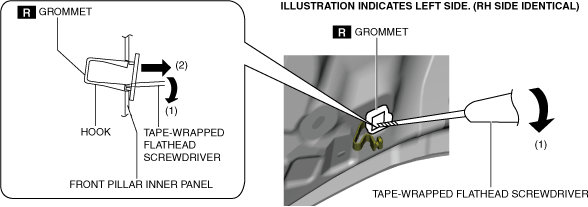

13.  Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the inner panel.

ac9uuw00005997

14.  Remove the grommet in the direction of arrow (2) shown in the figure.

15.  When installing the D-pillar trim, install new clip B and grommet to the D-pillar trim in advance.

16.  Install in the reverse order of removal.
