BRAKE LIGHT UNIT REMOVAL/INSTALLATION

id091800400000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

2.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

4.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

5.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

7.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

8.  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

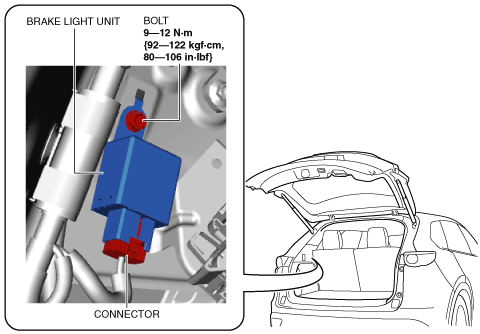

3.  Disconnect the connector.

ac9uuw00007121

4.  Remove the bolt.

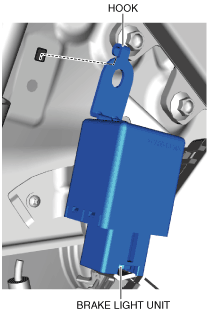

5.  Pull out the hook from the body and remove the brake light unit.

ac9uuw00007122

6.  Install in the reverse order of removal.
