MAZDA ERA-GLONASS CONTROL MODULE INSPECTION

id092200666500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item (s) and related wiring harnesses.
?  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the mazda era-glonass control module. (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)


Terminal Voltage Table (Reference)

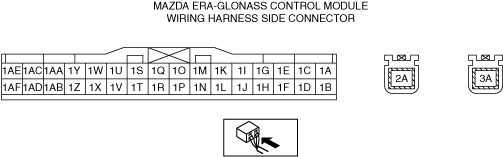

ac9wzw00005202

Terminal

Signal name

Connected to

Measurement conditions

Voltage (V)

Inspection item(s)
1A
IND1+
Mazda era-glonass switch
Under any condition
Approx. 5
•  Mazda era-glonass switch
•  Mazda era-glonass control module
1B
SW+
Mazda era-glonass switch
Under any condition
Approx. 5
•  Mazda era-glonass switch
•  Mazda era-glonass control module
1C
IND2+
Mazda era-glonass switch
Under any condition
Approx. 5
•  Mazda era-glonass switch
•  Mazda era-glonass control module
1D
SW/IND-
Mazda era-glonass switch
Under any condition
1.0 or less
•  Mazda era-glonass switch
•  Mazda era-glonass control module
1E
MIC_PWR
Microphone
Under any condition
Approx. 8
•  Microphone
•  Mazda era-glonass control module
1F
MIC_SENCE_IN
Microphone
Under any condition
1.0 or less
•  Microphone
•  Mazda era-glonass control module
1G
MIC_IN+
Microphone
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1H
MIC_SENCE_OUT
Connectivity master unit
Under any condition
1.0 or less
•  Connectivity master unit
•  Mazda era-glonass control module
1I
MIC_IN-
Microphone
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1J
MIC_GND
Microphone
Under any condition
1.0 or less
•  Microphone
•  Mazda era-glonass control module
1K
MIC_OUT+
Connectivity master unit
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1L
SP_OUT-
Mazda era-glonass speaker
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1M
MIC_OUT-
Connectivity master unit
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1N
SP_OUT+
Mazda era-glonass speaker
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1O
GND1
Body ground
Under any condition
1.0 or less
Body ground
1P
—
—
—
—
—
1Q
HS CAN_H
CAN system related module
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1R
GND3
Body ground
Under any condition
1.0 or less
Body ground
1S
HS CAN_L
CAN system related module
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1T
GND4
Body ground
Under any condition
1.0 or less
Body ground
1U
GND2
Body ground
Under any condition
1.0 or less
Body ground
1V
—
—
—
—
—
1W
—
—
—
—
—
1X
ACC_IN1
ACC relay
Switch the ignition to ACC
B+
•  ACC relay
•  AUDIO2 7.5A fuse
Other
1.0 or less
1Y
—
—
—
—
—
1Z
ACC_OUT1
•  Tuner and amp unit (TAU)
Switch the ignition to ACC
B+
•  Tuner and amp unit (TAU)
•  AUDIO2 7.5 A fuse
Other
1.0 or less
1AA
ENS2_IN
SAS control module
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1AB
—
—
—
—
—
1AC
ENS2_OUT
Rear body control module (RBCM)
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1AD
—
—
—
—
—
1AE
IG1
SRS1 7.5A fuse
Switch the ignition ON (engine on or off)
B+
SRS1 7.5A fuse
Switch the ignition OFF (LOCK)
1.0 or less
1AF
+B
ROOM 15 A fuse
Under any condition
B+
•  ROOM 15 A fuse
•  Battery
2A
GNSS_SIG
Mazda era-glonass antenna
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
3A
TEL_SIG
Mazda era-glonass antenna
Because this terminal is for communication, determination using terminal voltage inspection is not possible.
