MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION

id092200667000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Mazda ERA-GLONASS control module (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)

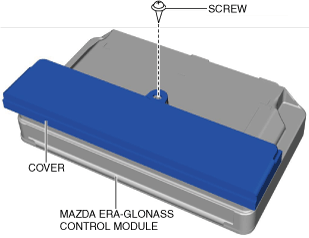

3.  Remove the screw.

ac9uuw00008882

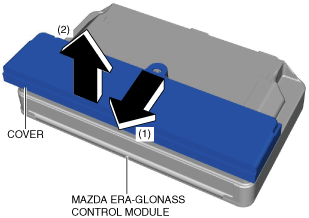

4.  Move the cover in the direction of the arrows in the order of (1) and (2) and remove it from the Mazda ERA-GLONASS control module.

ac9uuw00008883

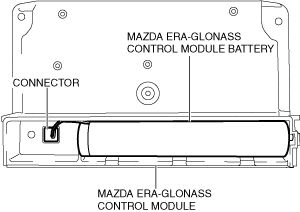

5.  Disconnect the connector.

ac9wzw00005068

6.  Remove the Mazda ERA-GLONASS control module battery.

7.  Install in the reverse order of removal.
