DTC B12BD:17 [360°VIEW MONITOR CONTROL MODULE]

id1502c7054900

Description	Rear mount camera, side camera, front camera internal voltage malfunction
Detection condition	• The 360°view monitor control module detects that the power outlet voltage of the rear mount camera, side camera, front camera is more than the specified range for a certain period of time.
Fail-safe	• Black screen displayed when system is starting

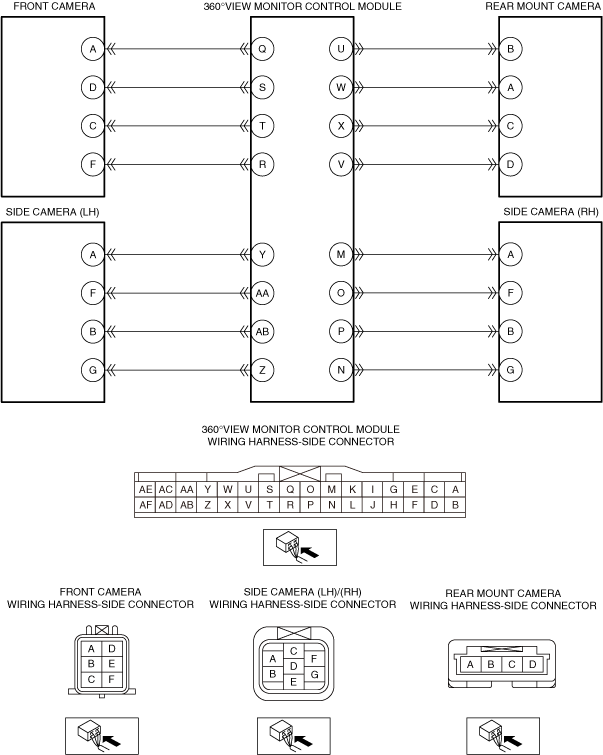

Possible cause	• 360°view monitor control module connector or terminal malfunction • Rear mount camera connector or terminal malfunction • Rear mount camera power supply circuit malfunction ? Short to power supply in wiring harness between 360°view monitor control module terminal U and rear mount camera terminal B • Rear mount camera malfunction • Side camera (LH) connector or terminal malfunction • Side camera (LH) power supply circuit malfunction ? Short to power supply in wiring harness between 360°view monitor control module terminal Y and side camera (LH) terminal A • Side camera (LH) malfunction • Side camera (RH) connector or terminal malfunction • Side camera (RH) power supply circuit malfunction ? Short to power supply in wiring harness between 360°view monitor control module terminal M and side camera (RH) terminal A • Side camera (RH) malfunction • Front camera connector or terminal malfunction • Front camera power supply circuit malfunction ? Short to power supply in wiring harness between 360°view monitor control module terminal Q and front camera terminal A • Front camera malfunction • 360°view monitor control module malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY OTHER 360°VIEW MONITOR CONTROL MODULE DTCs • Clear the DTC for the 360°view monitor control module using the M-MDS. (See CLEARING DTC [360°VIEW MONITOR CONTROL MODULE].) • Retrieve the 360°view monitor control module DTCs using the M-MDS. (See DTC INSPECTION [360°VIEW MONITOR CONTROL MODULE].) • Is DTC U3000:41 or U3000:49 displayed?	Yes	Replace the 360°view monitor control module, then go to Step 15. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.)
1		No	Go to the next step.
2	INSPECT 360°VIEW MONITOR CONTROL MODULE CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the 360°view monitor control module connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 15.
3	INSPECT REAR MOUNT CAMERA CONNECTOR CONDITION • Disconnect the rear mount camera connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector, then go to Step 15.
4	INSPECT REAR MOUNT CAMERA CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the rear mount camera and 360°view monitor control module connectors are disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ? Rear mount camera terminal B • Is the voltage 0 V?	Yes	Go to the next step.
4		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • 360°view monitor control module terminal U—Rear mount camera terminal B If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to power supply. Go to Step 15.
5	INSPECT REAR MOUNT CAMERA • Inspect the rear mount camera. (See REAR MOUNT CAMERA INSPECTION.) • Is the rear mount camera normal?	Yes	Go to the next step.
5		No	Replace the rear mount camera, then go to Step 15. (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)
6	INSPECT SIDE CAMERA (LH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the side camera (LH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
6		No	Repair or replace the connector, then go to Step 15.
7	INSPECT SIDE CAMERA (LH) CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the side camera (LH) and 360°view monitor control module connectors are disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ? Side camera (LH) terminal A • Is the voltage 0 V?	Yes	Go to the next step.
7		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • 360°view monitor control module terminal Y—Side camera (LH) terminal A If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to power supply. Go to Step 15.
8	INSPECT SIDE CAMERA (LH) • Inspect the side camera (LH). (See SIDE CAMERA INSPECTION.) • Is the side camera (LH) normal?	Yes	Go to the next step.
8		No	Replace the side camera (LH), then go to Step 15. (See SIDE CAMERA REMOVAL/INSTALLATION.)
9	INSPECT SIDE CAMERA (RH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the side camera (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
9		No	Repair or replace the connector, then go to Step 15.
10	INSPECT SIDE CAMERA (RH) CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the side camera (RH) and 360°view monitor control module connectors are disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ? Side camera (RH) terminal A • Is the voltage 0 V?	Yes	Go to the next step.
10		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • 360°view monitor control module terminal M—Side camera (RH) terminal A If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to power supply. Go to Step 15.
11	INSPECT SIDE CAMERA (RH) • Inspect the side camera (RH). (See SIDE CAMERA INSPECTION.) • Is the side camera (RH) normal?	Yes	Go to the next step.
11		No	Replace the side camera (RH), then go to Step 15. (See SIDE CAMERA REMOVAL/INSTALLATION.)
12	INSPECT FRONT CAMERA CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the front camera connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
12		No	Repair or replace the connector, then go to Step 15.
13	INSPECT FRONT CAMERA CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the front camera and 360°view monitor control module connectors are disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ? Front camera terminal A • Is the voltage 0 V?	Yes	Go to the next step.
13		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: • 360°view monitor control module terminal Q—Front camera terminal A If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to power supply. Go to Step 15.
14	INSPECT FRONT CAMERA • Inspect the front camera. (See FRONT CAMERA INSPECTION.) • Is the front camera normal?	Yes	Go to the next step.
14		No	Replace the front camera, then go to the next step. (See FRONT CAMERA REMOVAL/INSTALLATION.)
15	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the 360°view monitor control module using the M-MDS. (See CLEARING DTC [360°VIEW MONITOR CONTROL MODULE].) • Retrieve the 360°view monitor control module DTCs using the M-MDS. (See DTC INSPECTION [360°VIEW MONITOR CONTROL MODULE].) • Is the same Pending DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the 360°view monitor control module. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.) Go to the next step.
15		No	Go to the next step.
16	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [360°VIEW MONITOR CONTROL MODULE].)
16		No	DTC troubleshooting completed.
