INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0113q4801700

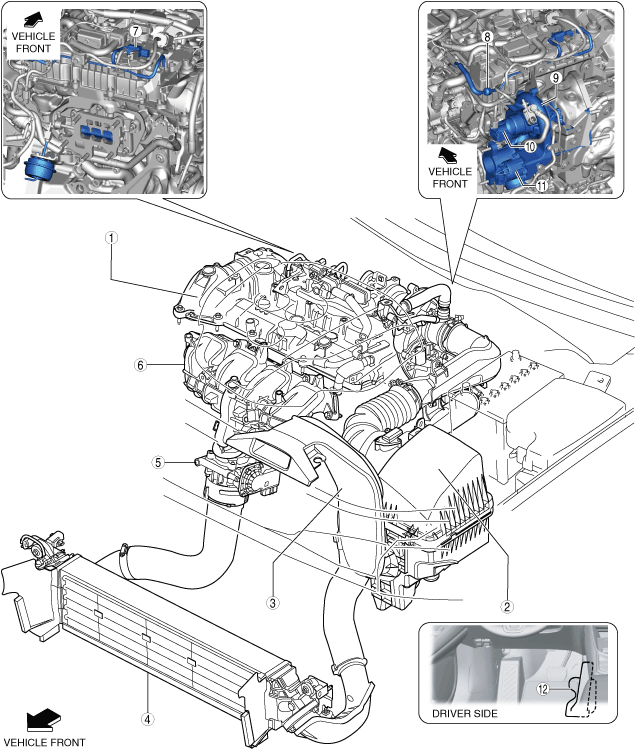

ac9uuw00009312

1	Cylinder head cover (built-in vacuum chamber) (See VACUUM CHAMBER INSPECTION [SKYACTIV-G 2.5T].) (See VACUUM CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.5T].)
3	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4	Charge air cooler (See CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CHARGE AIR COOLER INSPECTION [SKYACTIV-G 2.5T].)
5	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See THROTTLE BODY INSPECTION [SKYACTIV-G 2.5T].)
6	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.5T].)
7	Three way solenoid valve (See THREE WAY SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].) (See THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)
9	Dynamic pressure turbo (See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See DYNAMIC PRESSURE TURBO INSPECTION [SKYACTIV-G 2.5T].)
10	Air bypass valve (See AIR BYPASS VALVE INSPECTION [SKYACTIV-G 2.5T].) (See AIR BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
11	Wastegate valve actuator (See WASTEGATE VALVE ACTUATOR INSPECTION [SKYACTIV-G 2.5T].) (See WASTEGATE VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
12	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
