STEERING SHAFT INSPECTION

id061300801600

1.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(6)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(7)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(8)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

2.  Inspect the steering column for excessive play and damage.

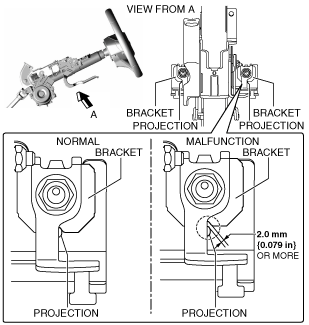

3.  Verify that the clearance between the projection on the steering column shown in the figure and the bracket is less than 2.0 mm {0.079 in}.

ac9uuw00006216

•  If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, replace the steering column component. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

Note

•  If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, the impact absorbing mechanism of the steering column will operate, therefore it is necessary to replace the steering column component.
