DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION

id091700606200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(6)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

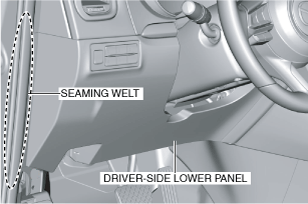

3.  Partially peel back the seaming welt.

ac9uuw00007491

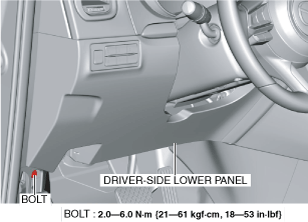

4.  Remove the bolt.

ac9uuw00005399

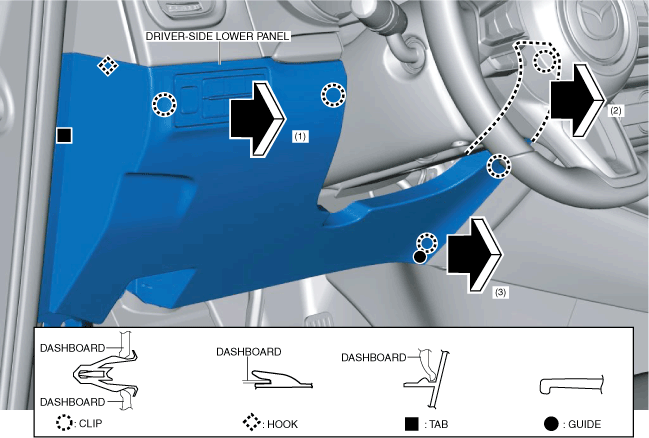

5.  Move the driver-side lower panel in the order of arrows (1), (2), and (3) shown in the figure, and detach the clips, hook, tab, and guide from the dashboard.

ac9wzw00004904

6.  Remove the wiring harness clip and disconnect the cluster switch connector.

7.  Disconnect the parking sensor buzzer connector. (with parking sensor buzzer)

8.  Remove the driver-side lower panel.

9.  Remove the cluster switch when replacing the driver-side lower panel. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

10.  Remove the parking sensor buzzer when replacing the driver-side lower panel. (with parking sensor buzzer) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)

11.  Install in the reverse order of removal.
