REFRIGERANT LINE REMOVAL/INSTALLATION

id071100803000

L.H.D.

Note

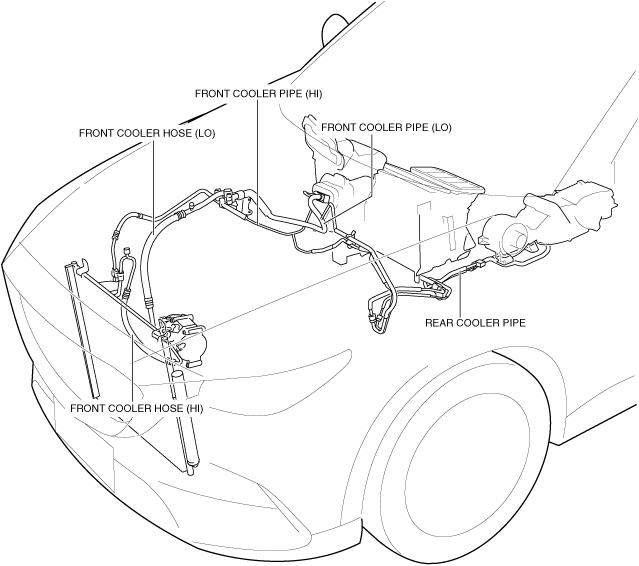

•  The refrigerant line consists of the following parts.

ac9uuw00007566

Front cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

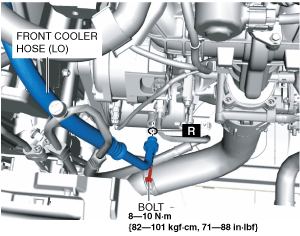

4.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003647

5.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

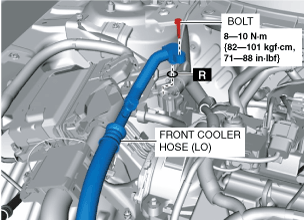

ac9uuw00007568

7.  Remove the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003648

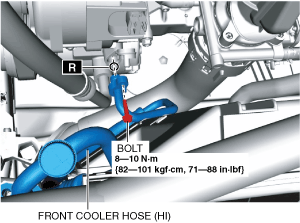

5.  Disconnect the front cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003649

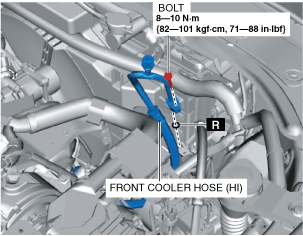

7.  Remove the front cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler pipe (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

4.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Battery (See BATTERY REMOVAL/INSTALLATION.)

(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION.)

(4)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(5)  Plate (See PLATE REMOVAL/INSTALLATION.)

(6)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(7)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(8)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(9)  Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(10)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

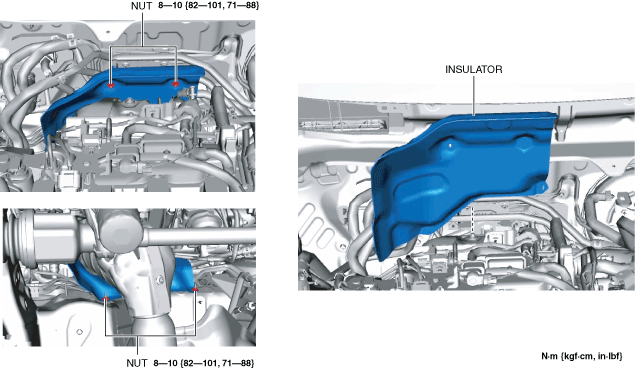

5.  Remove the nuts.

ac9wzw00003650

6.  Remove the insulator.

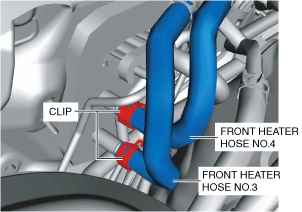

7.  Disconnect the front heater hose No.4.

ac9uuw00007573

8.  Disconnect the front heater hose No.3.

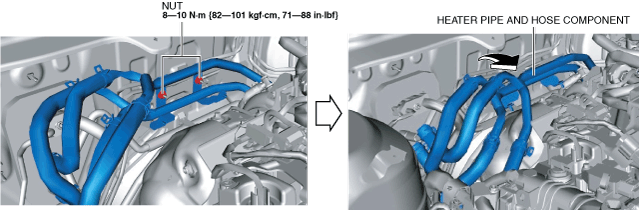

9.  Remove the nuts.

ac9wzw00003651

10.  Set the front heater pipe and hose component out of the way as shown in the figure.

11.  Remove the bolt. (See Refrigerant line removal note.)

ac9uuw00007568

12.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

13.  Remove the nut.

ac9uuw00007575

14.  Loosen the nut.

ac9wzw00003652

15.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

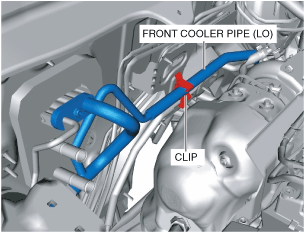

16.  Remove the front cooler pipe (LO) from the clip.

ac9wzw00003654

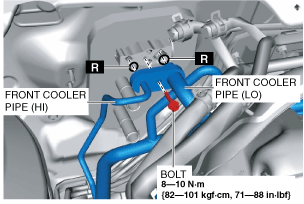

17.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003653

18.  Disconnect the front cooler pipe (HI) and front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

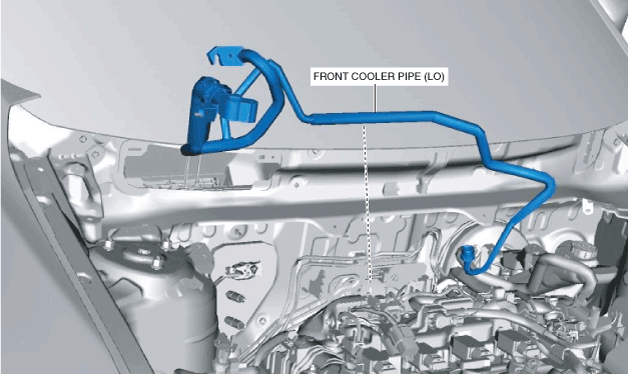

19.  Remove the front cooler pipe (LO). Do not allow compressor oil to spill.

ac9wzw00003655

20.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

21.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

22.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler pipe (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

4.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Battery (See BATTERY REMOVAL/INSTALLATION.)

(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION.)

(4)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(5)  Plate (See PLATE REMOVAL/INSTALLATION.)

(6)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(7)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(8)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(9)  Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(10)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

5.  Remove the nuts.

ac9wzw00003650

6.  Remove the insulator.

7.  Disconnect the front heater hose No.4.

ac9uuw00007573

8.  Disconnect the front heater hose No.3.

9.  Remove the nuts.

ac9wzw00003651

10.  Set the front heater pipe and hose component out of the way as shown in the figure.

11.  Remove the bolt. (See Refrigerant line removal note.)

ac9uuw00007568

12.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

13.  Remove the nut.

ac9uuw00007575

14.  Loosen the nuts.

ac9wzw00003656

15.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

16.  Remove the front cooler pipe (HI) from the clip.

ac9wzw00003657

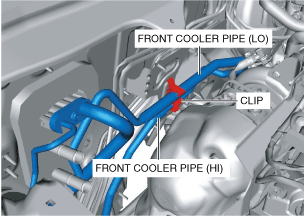

17.  Remove the front cooler pipe (LO) and front cooler pipe (HI) from the clip.

ac9wzw00003658

18.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003653

19.  Disconnect the front cooler pipe (HI) and front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

20.  Remove the front cooler pipe (LO). Do not allow compressor oil to spill.

ac9wzw00003655

21.  Disconnect the connectors.

ac9wzw00003659

22.  Remove the bolts.

23.  Set the PCM component out of the way.

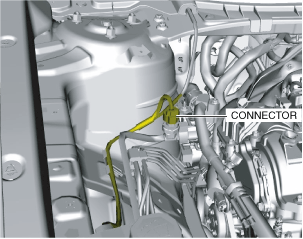

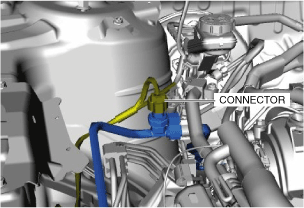

24.  Disconnect the connector.

ac9wzw00003660

25.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003661

26.  Disconnect the front cooler pipe (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

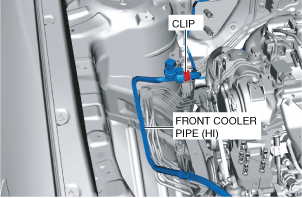

27.  Remove the front cooler pipe (HI) from the clip.

ac9wzw00003662

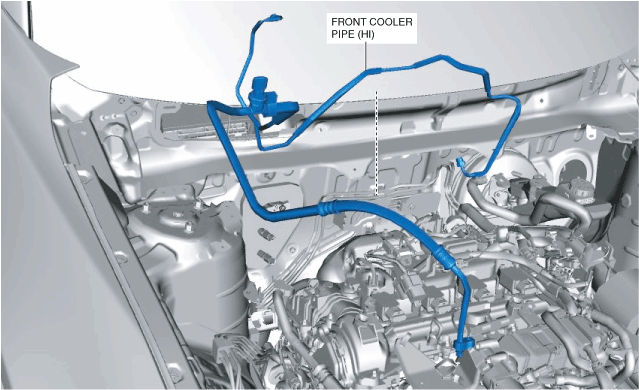

28.  Remove the front cooler pipe (HI). Do not allow compressor oil to spill.

ac9wzw00003663

29.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

30.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

31.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Rear cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the following parts:

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(3)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(4)  Plate (See PLATE REMOVAL/INSTALLATION.)

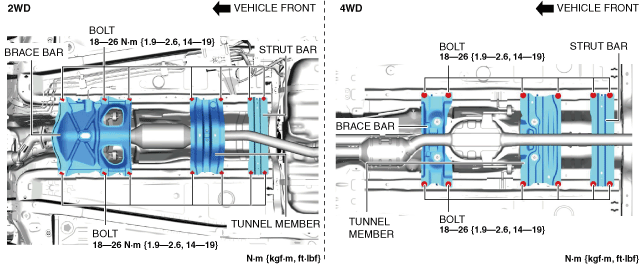

(5)  Brace bar

ac9wzw00003664

(6)  Tunnel member

(7)  Strut bar

(8)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

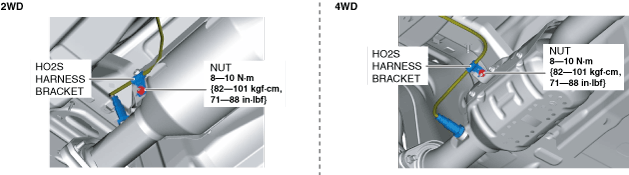

(9)  HO2S harness bracket

ac9wzw00003665

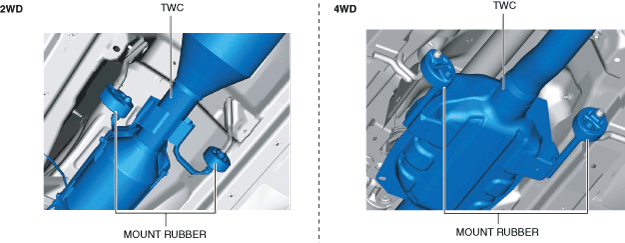

4.  Remove the TWC from the mount rubber.

ac9wzw00003666

5.  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Suspend the TWC using a cable as shown in the figure.

ac9wzw00003667

7.  Remove the propeller shaft. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8.  Remove the Insulator (front) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

9.  Loosen the nut and disconnect the front cooler pipe (HI). Do not allow compressor oil to spill.

ac9wzw00003668

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

10.  Loosen the nut and disconnect the front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

11.  Remove the bolt. (See Refrigerant line removal note.)

ac9uuw00007592

12.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

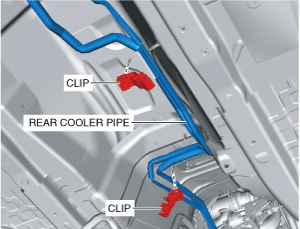

13.  Remove the clips.

ac9wzw00003669

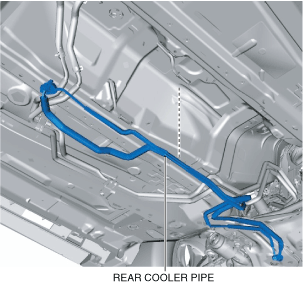

14.  Remove the rear cooler pipe. Do not allow compressor oil to spill.

ac9wzw00003670

15.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

16.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Refrigerant line removal note

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac9uuw00007569

Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac9uuw00007569

Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

R.H.D.

Note

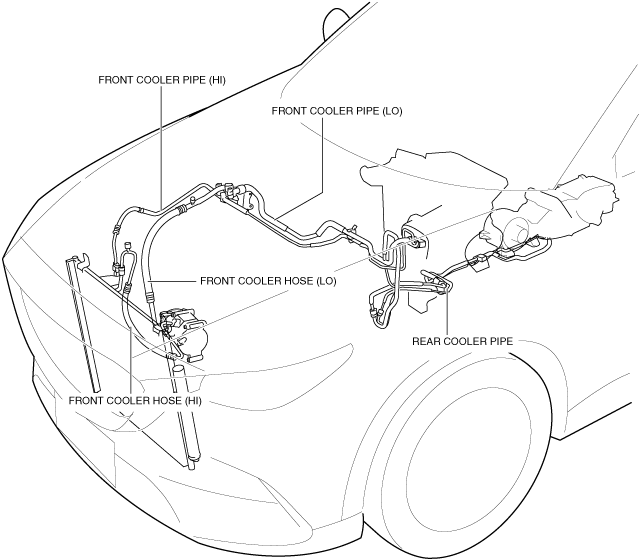

•  The refrigerant line consists of the following parts.

ac9wzw00003671

Front cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003647

5.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003672

7.  Remove the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003648

5.  Disconnect the front cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003649

7.  Remove the front cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler pipe (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

4.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Battery (See BATTERY REMOVAL/INSTALLATION.)

(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION.)

(4)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(5)  Plate (See PLATE REMOVAL/INSTALLATION.)

(6)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(7)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(8)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(9)  Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(10)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

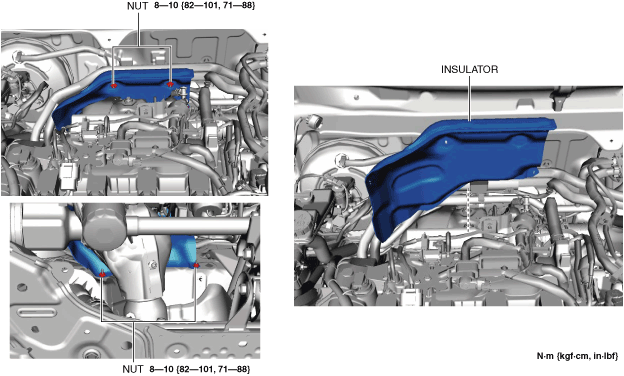

5.  Remove the nuts.

ac9wzw00003673

6.  Remove the insulator.

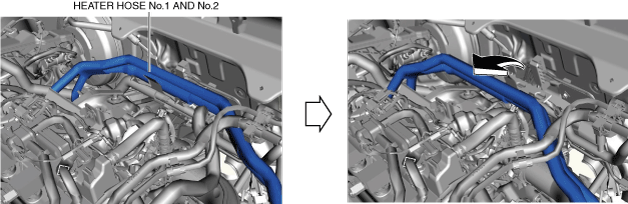

7.  Set the front heater hose No.1 and No.2 out of the way as shown in the figure.

ac9wzw00003674

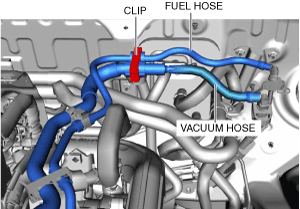

8.  Remove the fuel hose, vacuum hose, and clip as a single unit.

ac9wzw00003675

9.  Set the fuel hose and vacuum hose out of the way.

10.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003672

11.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

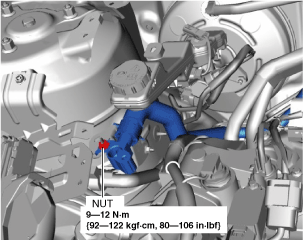

12.  Remove the nut.

ac9wzw00003676

13.  Loosen the nut.

ac9wzw00003652

14.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

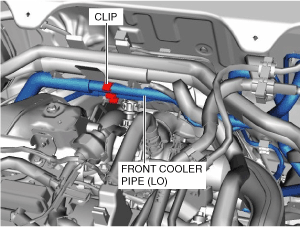

15.  Remove the front cooler pipe (LO) from the clip.

ac9wzw00003678

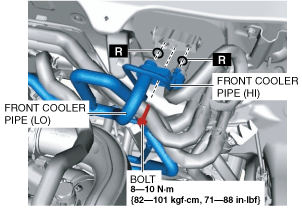

16.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003677

17.  Disconnect the front cooler pipe (HI) and front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

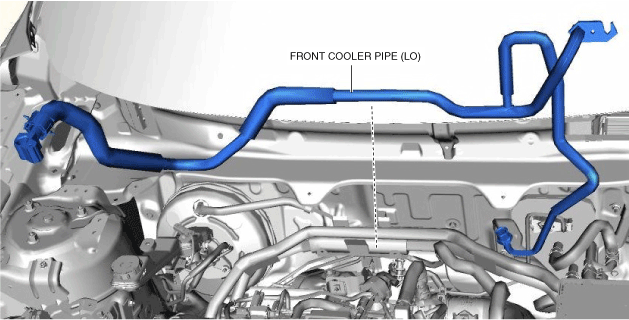

18.  Remove the front cooler pipe (LO). Do not allow compressor oil to spill.

ac9wzw00003679

19.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

20.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

21.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Front cooler pipe (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

4.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(2)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(3)  Battery (See BATTERY REMOVAL/INSTALLATION.)

(4)  Battery tray (See BATTERY REMOVAL/INSTALLATION.)

(5)  Plate (See PLATE REMOVAL/INSTALLATION.)

(6)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(7)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(8)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(9)  Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

(10)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

5.  Remove the nuts.

ac9wzw00003673

6.  Remove the insulator.

7.  Set the front heater hose No.1 and No.2 out of the way as shown in the figure.

ac9wzw00003674

8.  Remove the fuel hose and vacuum hose from the clip.

ac9wzw00003675

9.  Set the fuel hose and vacuum hose out of the way.

10.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003672

11.  Disconnect the front cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

12.  Remove the nut.

ac9wzw00003676

13.  Loosen the nuts.

ac9wzw00003656

14.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

15.  Remove the front cooler pipe (HI) from the clip.

ac9wzw00003680

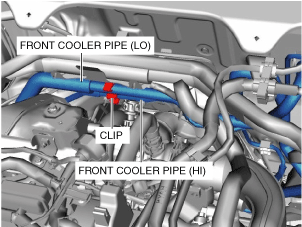

16.  Remove the front cooler pipe (LO) and front cooler pipe (HI) from the clip.

ac9wzw00003681

17.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003677

18.  Disconnect the front cooler pipe (HI) and front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

19.  Remove the front cooler pipe (LO). Do not allow compressor oil to spill.

ac9wzw00003679

20.  Disconnect the connectors.

ac9wzw00003659

21.  Remove the bolts.

22.  Set the PCM component out of the way.

23.  Disconnect the connector.

ac9wzw00003682

24.  Remove the bolt. (See Refrigerant line removal note.)

ac9wzw00003661

25.  Disconnect the front cooler pipe (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

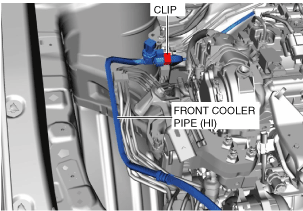

26.  Remove the front cooler pipe (HI) from the clip.

ac9wzw00003683

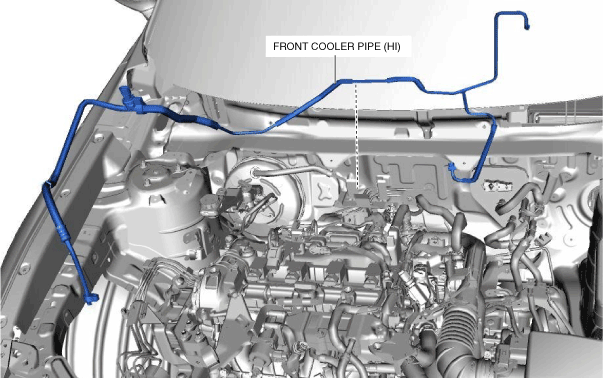

27.  Remove the front cooler pipe (HI). Do not allow compressor oil to spill.

ac9wzw00003684

28.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

29.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

30.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Rear cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the following parts:

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(3)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(4)  Plate (See PLATE REMOVAL/INSTALLATION.)

(5)  Brace bar

ac9wzw00003664

(6)  Tunnel member

(7)  Strut bar

(8)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(9)  HO2S harness bracket

ac9wzw00003665

4.  Remove the TWC from the mount rubber.

ac9wzw00003666

5.  Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Suspend the TWC using a cable as shown in the figure.

ac9wzw00003667

7.  Remove the propeller shaft. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8.  Remove the Insulator (front) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

9.  Loosen the nut and disconnect the front cooler pipe (HI). Do not allow compressor oil to spill.

ac9wzw00003668

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

10.  Loosen the nut and disconnect the front cooler pipe (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

11.  Remove the bolt. (See Refrigerant line removal note.)

ac9uuw00007592

12.  Disconnect the rear cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

13.  Remove the clips.

ac9wzw00003669

14.  Remove the rear cooler pipe. Do not allow compressor oil to spill.

ac9wzw00003670

15.  Install in the reverse order of removal. (See Refrigerant line installation note (1).)(See Refrigerant line installation note (2).)

16.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)

Refrigerant line removal note

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac9uuw00007569

Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac9uuw00007569

Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.
