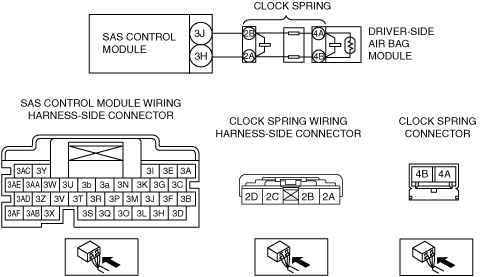

DTC B0001:11/B0001:12/B0001:13/B0001:19/B0001:1A [SAS CONTROL MODULE]

System malfunction location	• B0001:11: Driver-side air bag module circuit short to body ground • B0001:12: Driver-side air bag module circuit short to power supply • B0001:13: Driver-side air bag module circuit open circuit or resistance high • B0001:19: Short circuit to driver-side air bag module and other air bag module circuits • B0001:1A: Driver-side air bag module circuit resistance low
Detection condition	Warning • Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. • Resistance other than 0.99–6.42 ohms detected in driver-side air bag module circuit • Wiring harness between driver-side air bag module and SAS control module has malfunction
Fail-safe	Not applicable
Possible cause	• Clock spring connector malfunction • Clock spring malfunction • Short circuit to power supply or body ground in the wiring harness between the clock spring and SAS control module • Open circuit in the wiring harness between the clock spring and SAS control module • Short circuit to each other in the wiring harness between the clock spring and SAS control module • Short circuit to other air bag module circuits in the wiring harness between the clock spring and SAS control module • Driver-side air bag module malfunction • SAS control module malfunction

System malfunction location

• B0001:11: Driver-side air bag module circuit short to body ground

• B0001:12: Driver-side air bag module circuit short to power supply

• B0001:13: Driver-side air bag module circuit open circuit or resistance high

• B0001:19: Short circuit to driver-side air bag module and other air bag module circuits

• B0001:1A: Driver-side air bag module circuit resistance low

Detection condition

Warning

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• Resistance other than 0.99–6.42 ohms detected in driver-side air bag module circuit

• Wiring harness between driver-side air bag module and SAS control module has malfunction

Fail-safe

Not applicable

Possible cause

• Clock spring connector malfunction

• Clock spring malfunction

• Short circuit to power supply or body ground in the wiring harness between the clock spring and SAS control module

• Open circuit in the wiring harness between the clock spring and SAS control module

• Short circuit to each other in the wiring harness between the clock spring and SAS control module

• Short circuit to other air bag module circuits in the wiring harness between the clock spring and SAS control module

• Driver-side air bag module malfunction

• SAS control module malfunction

Step	Inspection	Action
1	INSPECT DRIVER-SIDE AIR BAG MODULE CONNECTOR Warning • Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.) • Switch the ignition off. • Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Remove the driver-side air bag module connector. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) • Inspect the clock spring connector. (Corrosion, damage, and disconnected pins) • Is there any malfunction of the clock spring connector?	Yes	Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.) Then go to Step 9.
No	Go to the next step.
2	INSPECT CLOCK SPRING • Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) • Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.) • Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.) • Inspect for continuity between clock spring connector terminals 2B—4A and 2A—4B. Note • Inspect the clock spring wiring harness for continuity while shaking it. • Is there continuity?	Yes	Go to the next step.
No	Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.) Then go to Step 9.
3	INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO GROUND • Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.) • Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side front seat connectors. (See FRONT SEAT REMOVAL/INSTALLATION.) • Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side curtain air bag module connectors. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.) • Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side front pre-tensioner seat belt connectors. (See FRONT SEAT BELT REMOVAL/INSTALLATION.) • Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.) • Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.) • Remove the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) • Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.) • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ? SAS control module terminal 3J ? SAS control module terminal 3H Note • Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Replace the malfunctioning part. If there is no common connector: • Replace the wiring harness which has a short to ground. Go to Step 9.
No	Go to the next step.
4	INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR OPEN CIRCUIT • SAS control module and clock spring connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ? Clock spring terminal 2B—SAS control module terminal 3J ? Clock spring terminal 2A—SAS control module terminal 3H Note • Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring. • Is there continuity?	Yes	Go to the next step.
No	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Replace the malfunctioning part. If there is no common connector: • Replace the wiring harness which has an open circuit. Go to Step 9.
5	INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO POWER SUPPLY • SAS control module and clock spring connectors are disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the following terminals (wiring harness-side): ? SAS control module terminal 3J ? SAS control module terminal 3H Note • Measure the voltage while shaking the wiring harness between the SAS control module and clock spring. • Is the voltage 0 V?	Yes	Go to the next step.
No	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. • Replace the malfunctioning part. If there is no common connector: • Replace the wiring harness which has a short to power supply. Go to Step 9.
6	INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO EACH OTHER • SAS control module and clock spring connectors are disconnected. • Switch the ignition off. • Inspect for continuity between the following terminals (wiring harness-side): ? Clock spring terminal 2A—SAS control module terminal 3J ? Clock spring terminal 2B—SAS control module terminal 3H Note • Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other. • Replace the malfunctioning part. If there is no common connector: • Replace the wiring harness which has a short to each other. Go to Step 9.
No	Go to the next step.
7	INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO OTHER AIR BAG MODULE CIRCUIT • SAS control module and clock spring connectors are disconnected. • Other air bag module and pre-tensioner seat belt connectors are disconnected. • Refer to the wiring diagram and inspect for continuity between the clock spring terminals and other air bag module / pre-tensioner seat belt terminals (wiring harness-side). Note • Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between clock spring terminal and other air bag module / pre-tensioner seat belt terminal. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to other air bag module or pre-tensioner seat belt circuit. • Replace the malfunctioning part. If there is no common connector: • Replace the wiring harness which has a short to other air bag module or pre-tensioner seat belt circuit. Go to Step 9.
No	Go to the next step.
8	INSPECT DRIVER-SIDE AIR BAG MODULE • Disconnect the negative battery terminal and wait for 1 min or more. • Connect the SAS control module connectors. • Except for the driver-side air bag module connector, reconnect all disconnected connectors. • Apply 2 ohms resistance to clock spring connector terminals 4A and 4B. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].) • Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].) • Are the same DTCs displayed?	Yes	Go to the next step.
No	Replace the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) Then go to the next step.
9	PERFORM SAS CONTROL MODULE DTC INSPECTION • Switch the ignition off. • Disconnect the negative battery terminal and wait for 1 min or more. • Disconnect the 2 ohms resistance. • Connect the driver-side air bag module connector. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].) • Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].) • Are the same DTCs displayed?	Yes	Repeat the inspection from Step 1. • Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
No	DTC troubleshooting completed.

Step

Inspection

Action

INSPECT DRIVER-SIDE AIR BAG MODULE CONNECTOR

Warning

• Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

• Switch the ignition off.

• Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

• Remove the driver-side air bag module connector. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.)

• Inspect the clock spring connector. (Corrosion, damage, and disconnected pins)

• Is there any malfunction of the clock spring connector?

Yes

Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

Then go to Step 9.

Go to the next step.

INSPECT CLOCK SPRING

• Remove the steering wheel.

(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

• Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

• Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

• Inspect for continuity between clock spring connector terminals 2B—4A and 2A—4B.

Note

• Inspect the clock spring wiring harness for continuity while shaking it.

• Is there continuity?

Yes

Go to the next step.

Replace clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

Then go to Step 9.

INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO GROUND

• Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

• Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side front seat connectors. (See FRONT SEAT REMOVAL/INSTALLATION.)

• Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side curtain air bag module connectors. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)

• Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side front pre-tensioner seat belt connectors. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

• Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

• Remove the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

• Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

• Inspect for continuity between the following terminals (wiring harness-side) and body ground:

? SAS control module terminal 3J

? SAS control module terminal 3H

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring.

• Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to ground.

Go to Step 9.

Go to the next step.

INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR OPEN CIRCUIT

• SAS control module and clock spring connectors are disconnected.

• Inspect for continuity between the following terminals (wiring harness-side):

? Clock spring terminal 2B—SAS control module terminal 3J

? Clock spring terminal 2A—SAS control module terminal 3H

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring.

• Is there continuity?

Yes

Go to the next step.

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has an open circuit.

Go to Step 9.

INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO POWER SUPPLY

• SAS control module and clock spring connectors are disconnected.

• Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

• Switch the ignition ON (engine off or on).

• Measure the voltage at the following terminals (wiring harness-side):

? SAS control module terminal 3J

? SAS control module terminal 3H

Note

• Measure the voltage while shaking the wiring harness between the SAS control module and clock spring.

• Is the voltage 0 V?

Yes

Go to the next step.

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to power supply.

Go to Step 9.

INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO EACH OTHER

• SAS control module and clock spring connectors are disconnected.

• Switch the ignition off.

• Inspect for continuity between the following terminals (wiring harness-side):

? Clock spring terminal 2A—SAS control module terminal 3J

? Clock spring terminal 2B—SAS control module terminal 3H

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring.

• Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and clock spring terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to each other.

Go to Step 9.

Go to the next step.

INSPECT DRIVER-SIDE AIR BAG MODULE CIRCUIT FOR SHORT TO OTHER AIR BAG MODULE CIRCUIT

• SAS control module and clock spring connectors are disconnected.

• Other air bag module and pre-tensioner seat belt connectors are disconnected.

• Refer to the wiring diagram and inspect for continuity between the clock spring terminals and other air bag module / pre-tensioner seat belt terminals (wiring harness-side).

Note

• Inspect for continuity while shaking the wiring harness between the SAS control module and clock spring.

• Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between clock spring terminal and other air bag module / pre-tensioner seat belt terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to other air bag module or pre-tensioner seat belt circuit.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to other air bag module or pre-tensioner seat belt circuit.

Go to Step 9.

Go to the next step.

INSPECT DRIVER-SIDE AIR BAG MODULE

• Disconnect the negative battery terminal and wait for 1 min or more.

• Connect the SAS control module connectors.

• Except for the driver-side air bag module connector, reconnect all disconnected connectors.

• Apply 2 ohms resistance to clock spring connector terminals 4A and 4B.

• Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].)

• Are the same DTCs displayed?

Yes

Go to the next step.

Replace the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL.)

Then go to the next step.

PERFORM SAS CONTROL MODULE DTC INSPECTION

• Switch the ignition off.

• Disconnect the negative battery terminal and wait for 1 min or more.

• Disconnect the 2 ohms resistance.

• Connect the driver-side air bag module connector.

• Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].)

• Are the same DTCs displayed?

Yes

Repeat the inspection from Step 1.

• Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)

DTC troubleshooting completed.
