HEADLINER REMOVAL/INSTALLATION

id091700605700

Note

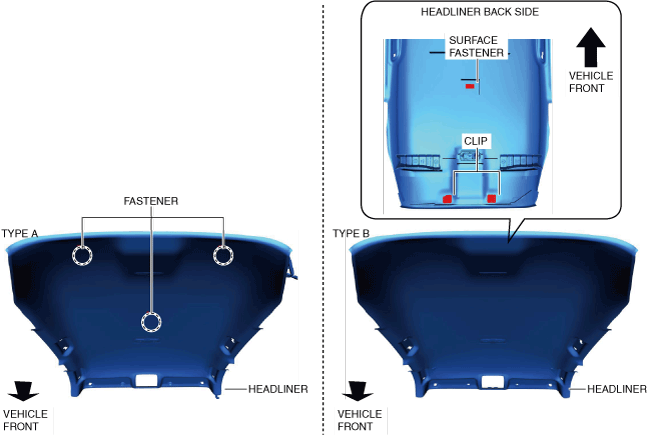

• There are two types of headliner. Verify the headliner shape before performing the procedures.

ac9wzw00005388

Type A

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(7) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

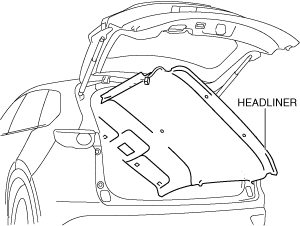

(9) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(11) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(12) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(14) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(15) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(16) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(17) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(18) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(19) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(20) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(21) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(22) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(23) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(24) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(25) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(26) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(27) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(28) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(29) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(30) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(31) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(32) Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(33) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

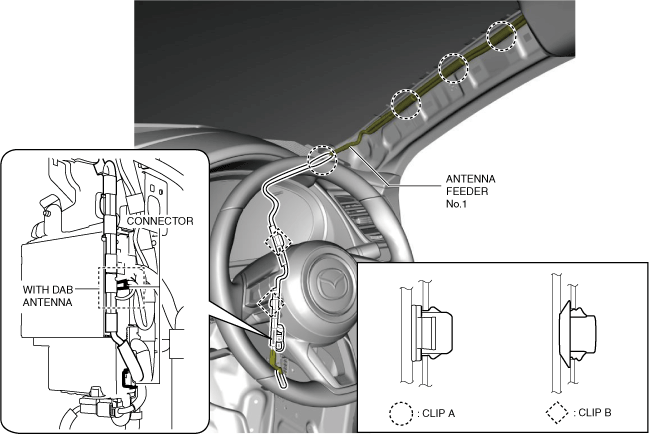

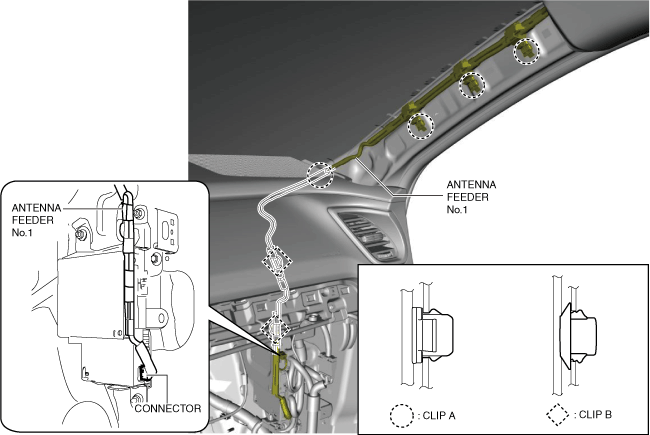

3. Remove the clips A and clips B in the position shown in the figure.

L.H.D.

ac9wzw00003873

R.H.D.

ac9wzw00003874

4. Disconnect the connectors.

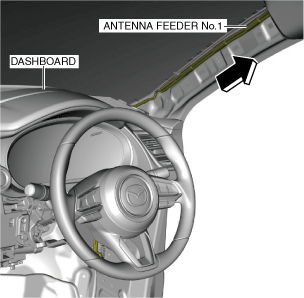

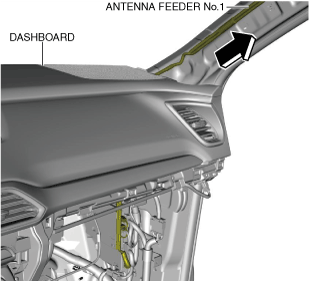

5. Pull the antenna feeder No.1 out from the A-pillar side.

L.H.D.

ac9wzw00003362

R.H.D.

ac9wzw00003363

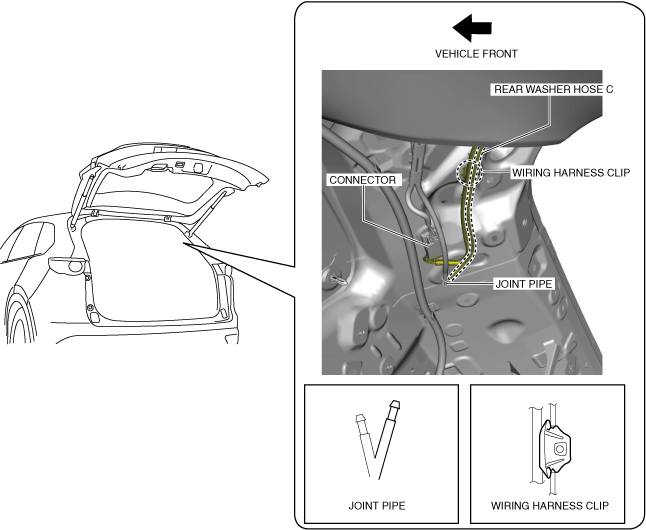

6. Disconnect rear washer hose C from the joint pipe.

ac9uuw00006103

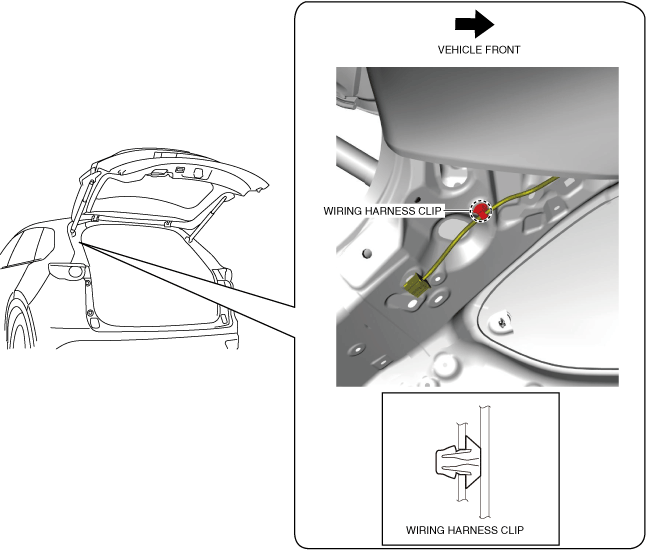

7. Remove the wiring harness clip.

8. Disconnect the connector.

9. Remove the wiring harness clip.

ac9wzw00005417

10. Affix protective tape to the position shown in the figure.

ac9uuw00006151

11. Fully recline the front seats.

12. Lower the second-row seat back.

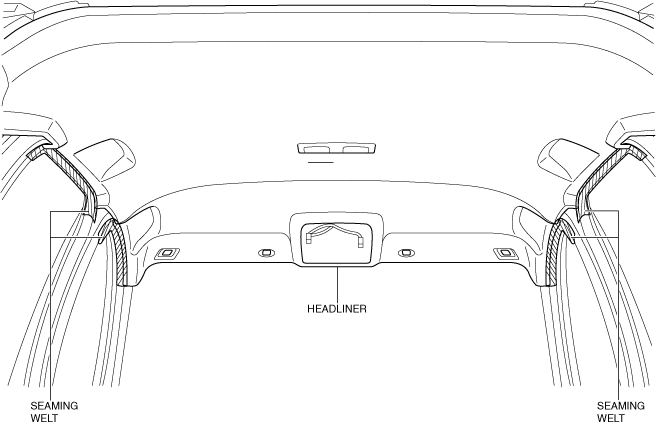

13. Temporarily install the seaming welts shown in the figure to the headliner.

Caution

• If the fasteners are removed without temporarily installing the seaming welts, the headliner may fall off and the part may be damaged. Before removing the fasteners, temporarily install the seaming welts to prevent the headliner from falling off.

ac9wzw00005389

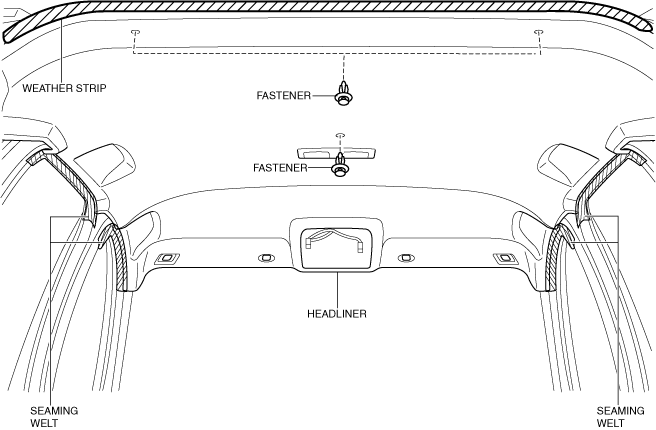

14. Remove the fasteners.

ac9wzw00004818

15. Partially peel back the weather strip.

16. Peel back the seaming welts and place the headliner on the seats.

17. Take the headliner out from the opened liftgate.

ac9wzw00005390

18. Install in the reverse order of removal.

Type B

Preparation Before Servicing

Caution

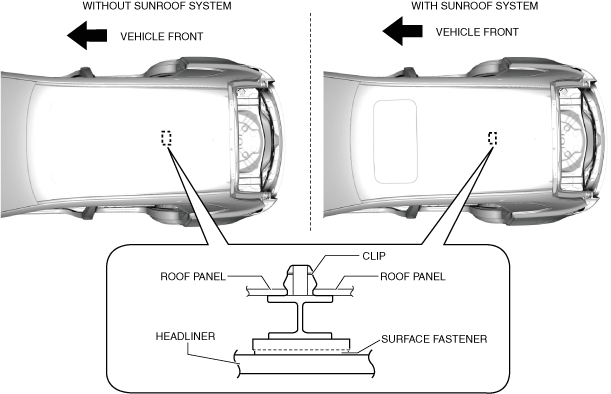

• The location of the headliner shown in the figure is installed to the roof panel using a clip via the surface fastener. If the surface fastener is peeled off or a clip is removed forcibly when removing the headliner, the headliner will be damaged. Disconnect the surface fastener using a string before removing the headliner.

ac9wzw00005488

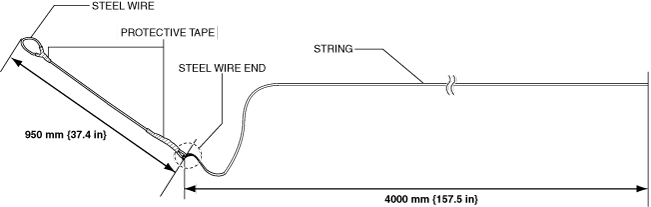

1. Form the steel wire (approx. ? 2 mm {0.08 in}) into the shape shown in the figure and tie a string (approx. ?3 mm {0.1 in}) to the steel wire end.

ac9uuw00006101

2. To prevent the steel wire from getting caught on the headliner, wrap the position shown in the figure with protective tape.

Removal

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

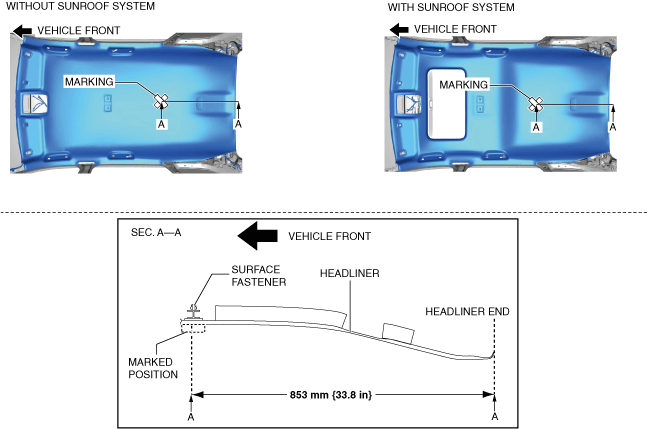

2. Mark the position shown in the figure using tape to verify the position of the surface fastener.

ac9wzw00005489

3. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(8) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(9) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(11) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(13) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(14) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(15) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(16) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(17) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(18) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(19) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(20) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(21) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(22) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(23) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(24) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(25) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(26) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(27) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(28) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(29) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(30) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(31) Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(32) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

4. Remove the clips A and clips B in the position shown in the figure.

L.H.D.

ac9wzw00003873

R.H.D.

ac9wzw00003874

5. Disconnect the connectors.

6. Pull the roof wiring harness out from the A-pillar side.

L.H.D.

ac9wzw00003362

R.H.D.

ac9wzw00003363

7. Disconnect rear washer hose C from the joint pipe.

ac9uuw00006103

8. Remove the wiring harness clip.

9. Disconnect the connector.

10. Remove the wiring harness clip.

ac9wzw00005417

11. Affix protective tape to the position shown in the figure.

ac9uuw00006151

12. Fully recline the front seats.

13. Lower the second-row seat back.

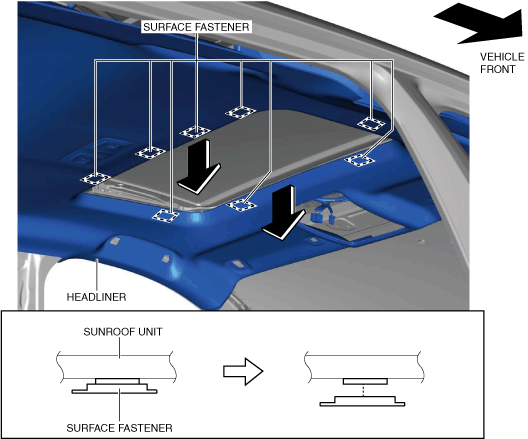

14. Move the headliner in the direction of the arrows shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)

ac9wzw00004822

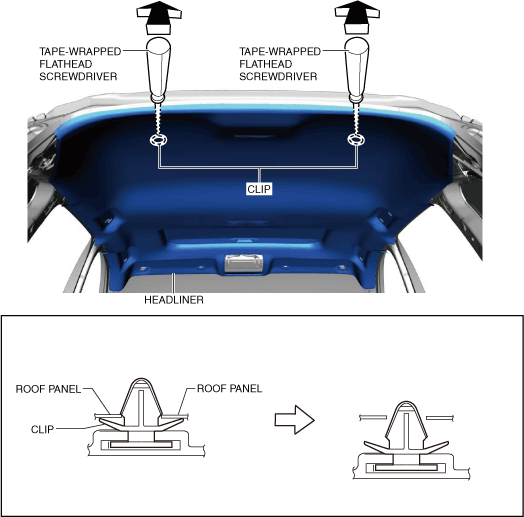

15. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and detach the clips.

ac9wzw00005490

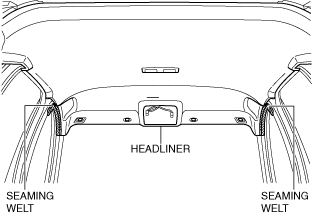

16. Temporarily install the seaming welts shown in the figure to the headliner.

Caution

ac9wzw00004817

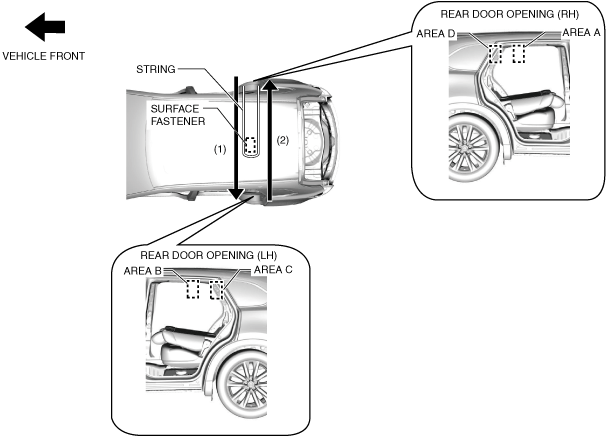

17. For vehicles without the sunroof system, hook a string with the surface fastener using the following procedure.

(1) Insert the steel wire processed for the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.

ac9wzw00005393

(2) Move the steel wire in the direction of arrow (1) shown in the figure and pull it out of area B shown in the figure.

(3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.

(4) Move the steel wire in the direction of arrow (2) shown in the figure and pull it out of area D shown in the figure.

(5) Adjust the string position so that the string contacts the surface fastener.

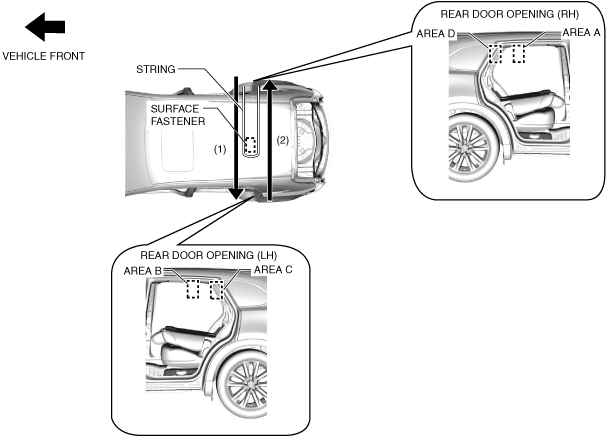

18. For vehicles with the sunroof system, hook a string to the surface fastener using the following procedure.

(1) Insert the steel wire processed for the preparation before servicing and a string between the roof panel and the headliner from area A shown in the figure.

ac9wzw00005394

(2) Move the steel wire in the direction of arrow (1) shown in the figure and pull it out of area B shown in the figure.

(3) Insert the steel wire between the roof panel and the headliner from area C shown in the figure.

(4) Move the steel wire in the direction of arrow (2) shown in the figure and pull it out of area D shown in the figure.

(5) Adjust the string position so that the string contacts the surface fastener.

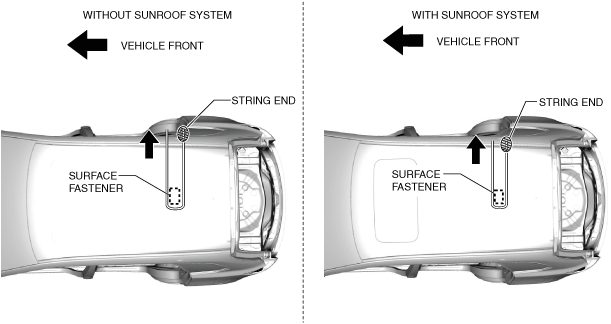

19. Pull the string in the direction of the arrow with the string end shown in the figure held and disconnect the surface fastener.

ac9wzw00005395

20. Partially peel back the seaming welts and take the headliner out from the opened liftgate.

ac9wzw00005390

Installation

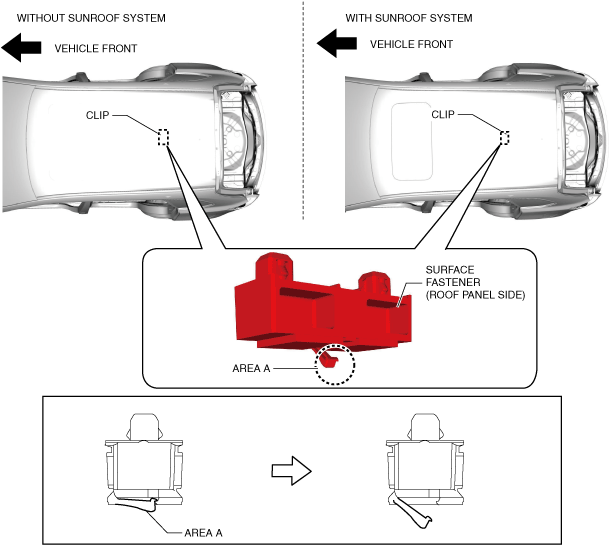

1. Pull out area A of the clip for the surface fastener (roof panel side) shown in the figure using a flathead screwdriver.

ac9wzw00005491

Note

• To avoid adhering the surface fastener to the headliner before installing the headliner, pull out area A of the clip.

2. Insert the headliner from the liftgate opening.

ac9wzw00005390

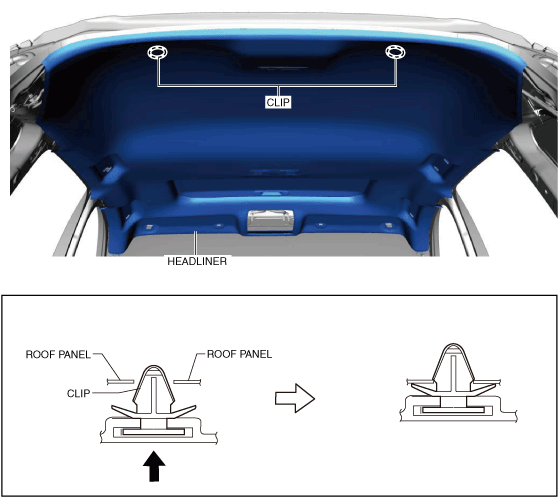

3. Press the headliner in the direction of the arrows shown in the figure and detach the clips.

ac9wzw00005492

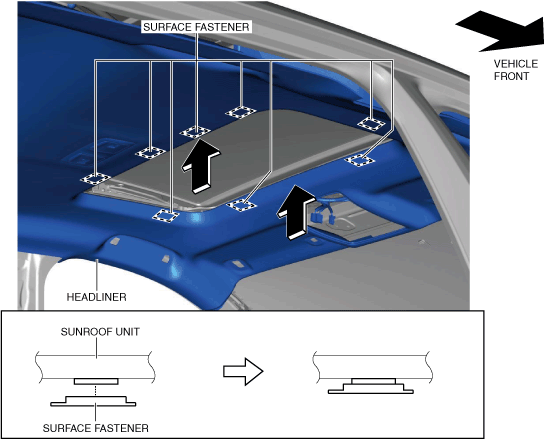

4. Press the headliner in the direction of the arrows shown in the figure and detach the surface fasteners. (with sunroof system)

ac9wzw00005493

5. Install the seaming welts shown in the figure.

ac9wzw00005389

6. Install the wiring harness clips.

ac9wzw00005417

7. Connect the connector.

ac9uuw00006103

8. Install the wiring harness clip.

9. Connect rear washer hose C with the joint pipe.

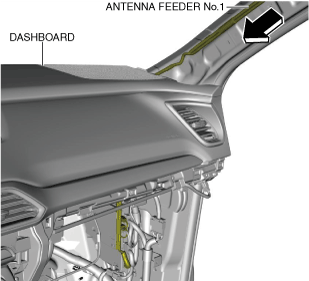

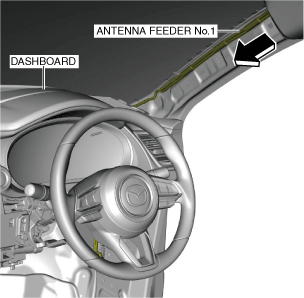

10. Insert the antenna feeder No.1 in the direction of the arrow shown in the figure.

L.H.D.

ac9wzw00005398

R.H.D.

ac9wzw00004821

11. Connect the connectors.

L.H.D.

ac9wzw00003873

R.H.D.

ac9wzw00003874

12. Install the clips A and clips B in the position shown in the figure.

13. Install the following parts:

(1) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(3) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(4) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(5) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(6) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(7) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(8) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(9) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(10) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(13) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(14) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(15) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(16) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(17) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(18) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(19) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(20) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(21) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(22) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(23) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(24) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(25) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(26) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(27) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(28) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(29) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(30) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(31) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(32) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

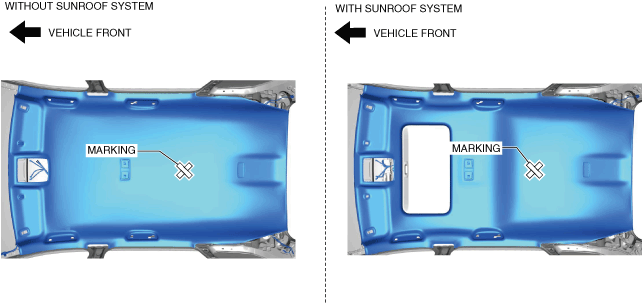

14. Press the marked location by hand and press fit the surface fastener.

ac9wzw00005399

15. Remove the marking.

16. Move the second-row seat back to their upright positions.

17. Move the front seats to their upright positions.

18. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
