HEEL CUSHION REMOVAL/INSTALLATION

id091700606000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

(4)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(5)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(8)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(9)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(10)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Partially peel back the floor covering.

4.  Remove the fastener.

ac9uuw00005642

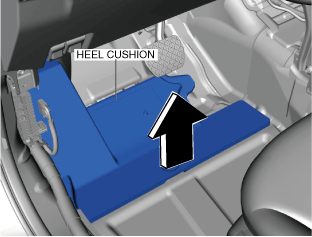

5.  Pull the heel cushion in the direction of the arrow and remove it.

ac9uuw00005643

6.  Install in the reverse order of removal.
