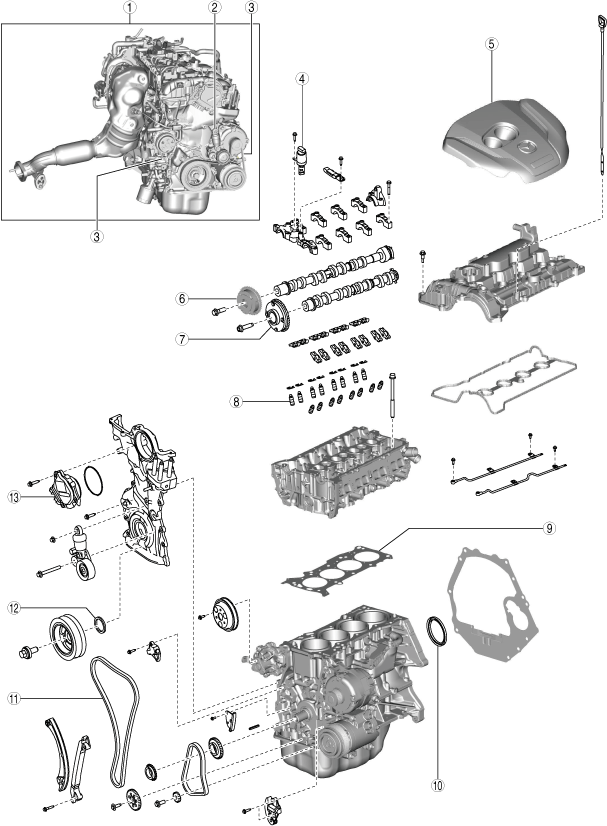

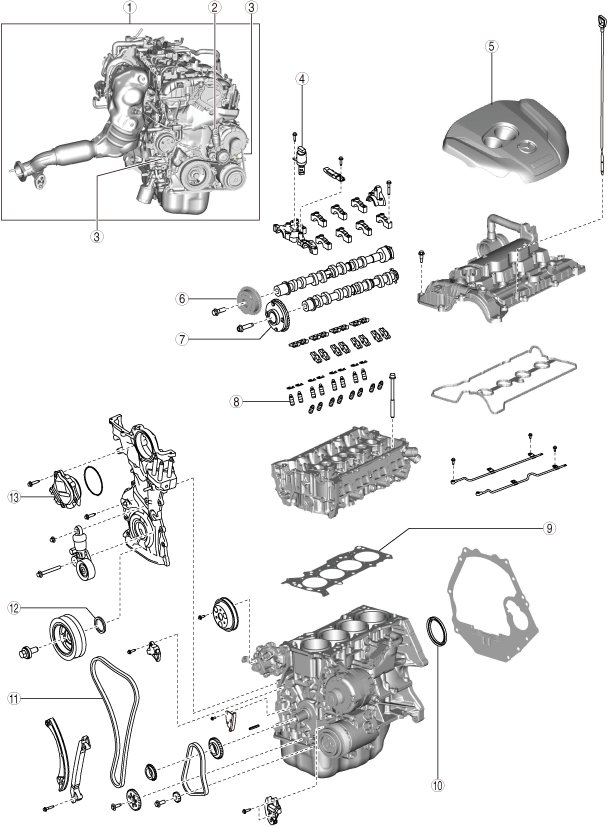

ENGINE LOCATION INDEX [SKYACTIV-G 2.5T]

id0110q8800100

Taiwan

ac9wzw00005705

Except Taiwan

ac9uuw00006340

1
Engine
(See ENGINE TUNE-UP [SKYACTIV-G 2.5T].)
(See COMPRESSION INSPECTION [SKYACTIV-G 2.5T].)
(See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)
(See ENGINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ENGINE DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)
2
Drive belt auto tensioner
(See DRIVE BELT AUTO TENSIONER INSPECTION [SKYACTIV-G 2.5T].)
(See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3
Drive belt
(See DRIVE BELT INSPECTION [SKYACTIV-G 2.5T].)
(See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4
OCV
(See OIL CONTROL VALVE (OCV) INSPECTION [SKYACTIV-G 2.5T].)
(See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5
Plug hole plate
(See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
Hydraulic variable valve timing actuator
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.5T].)
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7
Electric variable valve timing actuator
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.5T].)
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8
HLA
(See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [SKYACTIV-G 2.5T].)
(See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
9
Cylinder head gasket
(See CYLINDER HEAD GASKET REPLACEMENT [SKYACTIV-G 2.5T].)
10
Rear oil seal
(See REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.5T].)
11
Timing chain
(See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
12
Front oil seal
(See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G 2.5T].)
13
Electric variable valve timing motor/driver
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [SKYACTIV-G 2.5T].)
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
