DYNAMIC STABILITY CONTROL LOCATION INDEX

id041500800500


Vehicle Front Side

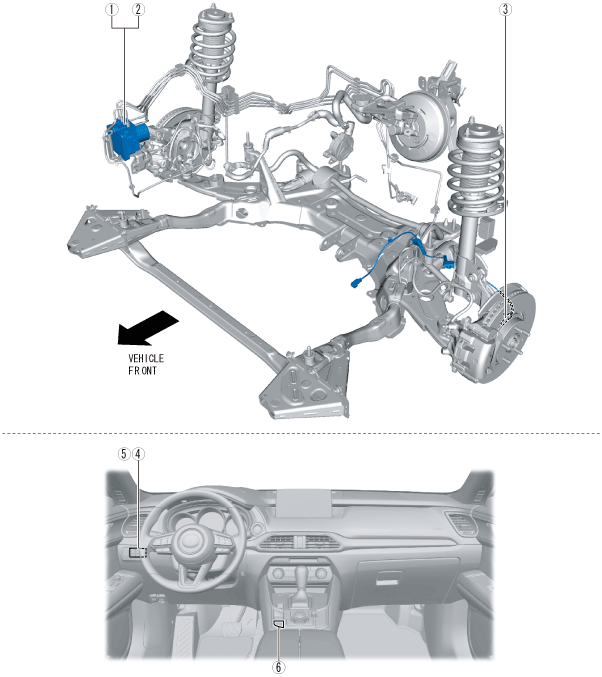

L.H.D.

ac9wzw00004539

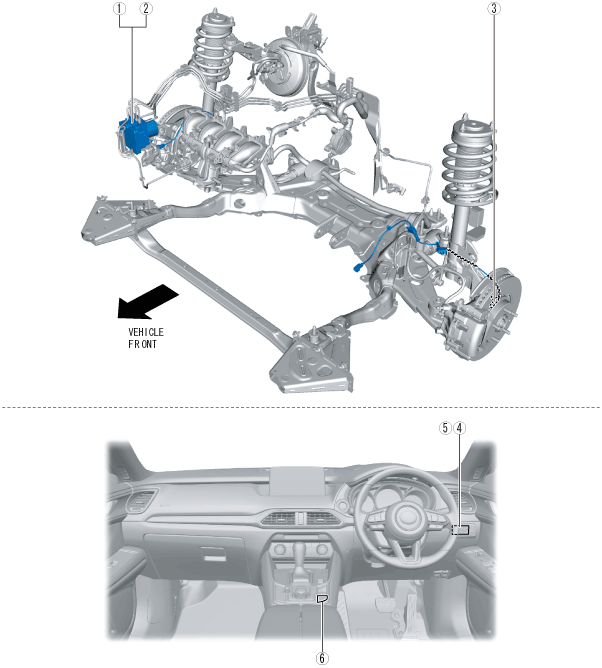

R.H.D.

ac9wzw00004536

1
DSC HU/CM
(See DSC HU/CM REMOVAL/INSTALLATION.)
(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
(See DSC HU/CM INSPECTION.)
2
Brake fluid pressure sensor (built-into DSC HU/CM)
(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
(See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
3
Front ABS wheel-speed sensor
(See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4
TCS OFF switch (Without Off-Road Traction Assist)
(See TCS OFF SWITCH REMOVAL/INSTALLATION [WITHOUT OFF-ROAD TRACTION ASSIST].)
(See TCS OFF SWITCH INSPECTION [WITHOUT OFF-ROAD TRACTION ASSIST].)
5
Off-Road Traction Assist switch (With Off-Road Traction Assist)
(See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST].)
(See OFF-ROAD TRACTION ASSIST SWITCH INSPECTION [WITH OFF-ROAD TRACTION ASSIST].)
6
AUTO HOLD switch (With AUTO HOLD)
(See AUTO HOLD SWITCH REMOVAL/INSTALLATION [WITH AUTO HOLD].)
(See AUTO HOLD SWITCH INSPECTION [WITH AUTO HOLD].)

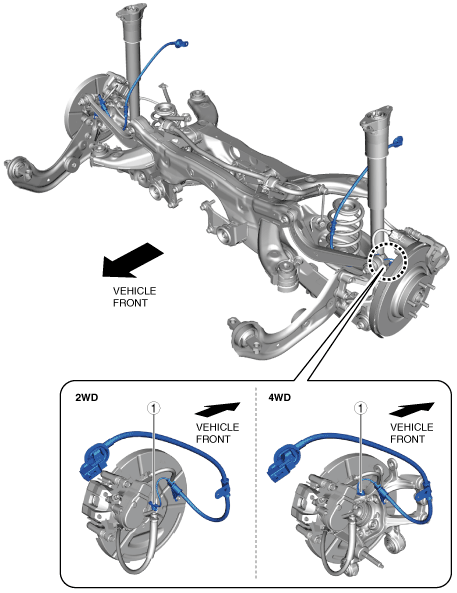

Vehicle Rear Side

ac9wzw00004537

1
Rear ABS wheel-speed sensor
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD].)
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD].)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION [4WD].)
