DTC B1197:11/B1197:13/B1197:87/B1197:96 [SAS CONTROL MODULE]

id0802g6847400

System malfunction location
•  B1197:11: Passenger-side side air bag sensor No.2 circuit short to body ground
•  B1197:13: Passenger-side side air bag sensor No.2 circuit open circuit or short to power supply
•  B1197:87: Signal reception error from passenger-side side air bag sensor No.2
•  B1197:96: Passenger-side side air bag sensor No.2 internal malfunction
Detection condition
Warning
•  Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
•  Wiring harness between the passenger-side side air bag sensor No.2 and SAS control module has a malfunction
•  Passenger-side side air bag sensor No.2 has a malfunction
Fail-safe
Not applicable
Possible cause
•  Passenger-side side air bag sensor No.2 connector malfunction
•  Short circuit to power supply or body ground in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module
•  Open circuit in the wiring harness between the passenger-side side air bag sensor No.2 and SAS control module
•  Short circuit to power supply or body ground in wiring harness between the driver-side crash zone sensor and SAS control module
•  Passenger-side side air bag sensor No.2 malfunction
•  SAS control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CONNECTOR
Warning
•  Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.
•  Switch the ignition off.
•  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
•  Remove the passenger-side trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
•  Disconnect the passenger-side side air bag sensor No.2 connector. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
•  Inspect the passenger-side side air bag sensor No.2 connector (wiring harness-side). (Corrosion, damage, and disconnected pins)
•  Is there any malfunction of the passenger-side side air bag sensor No.2 connector (wiring harness-side)?
Yes
Replace the malfunctioning part, then go to Step 5.
No
Go to the next step.
2
INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 AND DRIVER-SIDE CRASH ZONE SENSOR CIRCUITS FOR SHORT TO GROUND
•  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
•  Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION.)
•  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
•  Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
•  Disconnect the driver and passenger-side front seat connectors. (See FRONT SEAT REMOVAL/INSTALLATION.)
•  Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)
•  Disconnect the driver and passenger-side curtain air bag module connectors. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION.)
•  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
•  Disconnect the driver and passenger-side front pre-tensioner seat belt connectors. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
•  Remove the driver-side trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
•  Disconnect the driver and passenger-side rear pre-tensioner seat belt connectors. (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
•  Remove the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
•  Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
•  Remove the front bumper.
•  Disconnect the driver-side crash zone sensor connector.

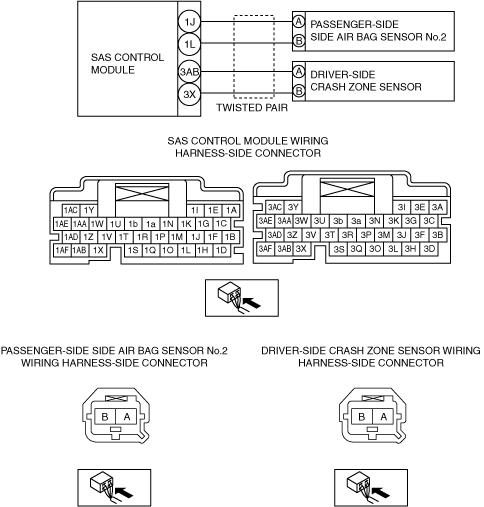

•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:
?  SAS control module terminal 1J
?  SAS control module terminal 1L
?  SAS control module terminal 3AB
?  SAS control module terminal 3X
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.
•  Is there continuity?
Yes
Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 / driver-side crash zone sensor terminal.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
•  Replace the malfunctioning part.
If there is no common connector:
•  Replace the wiring harness which has a short to ground.
Go to Step 5.
No
Go to the next step.
3
INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 CIRCUIT FOR OPEN CIRCUIT
•  Passenger-side side air bag sensor No.2 and SAS control module connectors are disconnected.
•  Inspect for continuity between the following terminals (wiring harness-side):
?  Passenger-side side air bag sensor No.2 terminal A—SAS control module terminal 1J
?  Passenger-side side air bag sensor No.2 terminal B—SAS control module terminal 1L
Note
•  Inspect for continuity while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.
•  Is there continuity?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 terminal.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
•  Replace the malfunctioning part.
If there is no common connector:
•  Replace the wiring harness which has an open circuit.
Go to Step 5.
4
INSPECT PASSENGER-SIDE SIDE AIR BAG SENSOR NO.2 AND DRIVER-SIDE CRASH ZONE SENSOR CIRCUITS FOR SHORT TO POWER SUPPLY
•  Passenger-side side air bag sensor No.2, driver-side crash zone sensor and SAS control module connectors are disconnected.
•  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at the following terminals (wiring harness-side):
?  SAS control module terminal 1J
?  SAS control module terminal 1L
?  SAS control module terminal 3AB
?  SAS control module terminal 3X
Note
•  Measure the voltage while shaking the wiring harness between the SAS control module and passenger-side side air bag sensor No.2.
•  Is the voltage 0 V?
Yes
Replace the passenger-side side air bag sensor No.2, then go to the next step. (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION.)
No
Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and passenger-side side air bag sensor No.2 / driver-side crash zone sensor terminal.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Replace the malfunctioning part.
If there is no common connector:
•  Replace the wiring harness which has a short to power supply.
Go to the next step.
5
PERFORM SAS CONTROL MODULE DTC INSPECTION
•  Switch the ignition off.
•  Disconnect the negative battery terminal and wait for 1 min or more.
•  Connect the SAS control module connectors.
•  Reconnect all disconnected connectors.
•  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
•  Switch the ignition ON (engine off or on).
•  Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE].)
•  Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE].)
•  Are the same DTCs displayed?
Yes
Repeat the inspection from Step 1.
•  Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
No
DTC troubleshooting completed.
