CONDENSER REMOVAL/INSTALLATION

id092000803000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(7)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(8)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(9)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(11)  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(12)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(13)  Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

3.  Partially peel back the headliner.

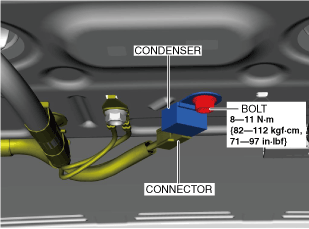

4.  Disconnect the connector.

ac9wzw00004099

5.  Remove the bolt.

6.  Remove the condenser.

7.  Install in the reverse order of removal.
