CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100


Vehicle Front Side

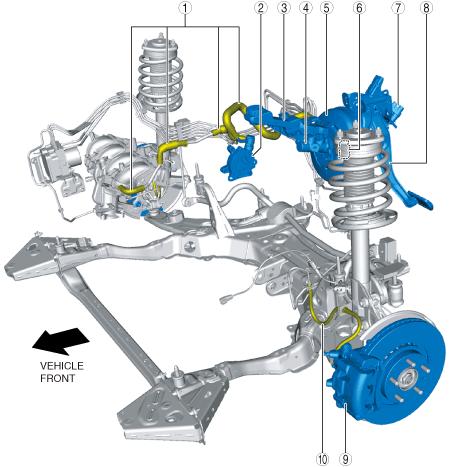

L.H.D.

ac9wzw00004513

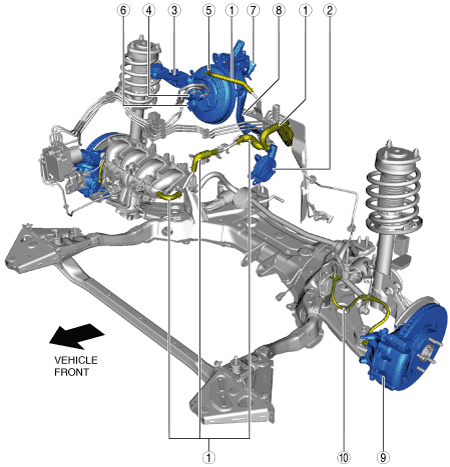

R.H.D.

ac9wzw00004514

1
Vacuum line
(See VACUUM LINE INSPECTION.)
(See VACUUM HOSE REMOVAL/INSTALLATION [L.H.D.].)
(See VACUUM HOSE REMOVAL/INSTALLATION [R.H.D.].)
2
Vacuum pump
(See VACUUM PUMP INSPECTION.)
(See VACUUM PUMP REMOVAL/INSTALLATION.)
3
Brake fluid
(See BRAKE FLUID INSPECTION.)
(See BRAKE FLUID AIR BLEEDING.)
4
Master cylinder
(See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].)
(See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)
(See BRAKE FLUID LEVEL SENSOR INSPECTION.)
5
Power brake unit
(See POWER BRAKE UNIT INSPECTION.)
(See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].)
(See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)
6
Power brake unit vacuum sensor (vehicles with i-stop)
(See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION.)
7
Brake switch
(See BRAKE SWITCH INSPECTION.)
8
Brake pedal
(See BRAKE PEDAL INSPECTION.)
(See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)
(See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
9
Front brake (disc)
(See FRONT BRAKE (DISC) INSPECTION.)
(See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.)
(See DISC PAD (FRONT) REPLACEMENT.)
(See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.)
10
Brake hose (front)
(See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)

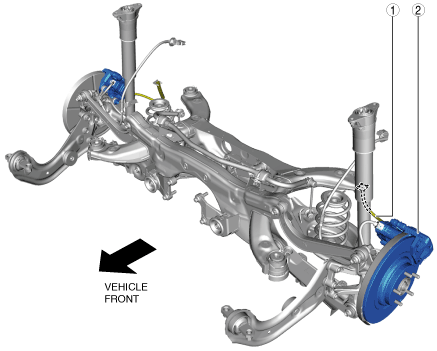

Vehicle Rear Side

ac9uuw00008892

1
Brake hose (rear)
(See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
2
Rear brake (disc)
(See REAR BRAKE (DISC) INSPECTION.)
(See REAR BRAKE (DISC) REMOVAL/INSTALLATION.)
(See DISC PAD (REAR) REPLACEMENT.)
(See CALIPER (REAR) DISASSEMBLY/ASSEMBLY.)
