PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION

id091700606300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(11)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(12)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

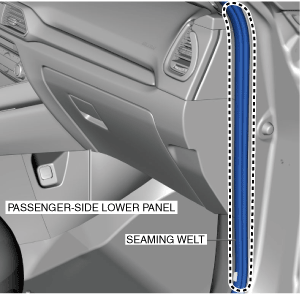

3.  Partially peel back the seaming welt.

ac9uuw00007718

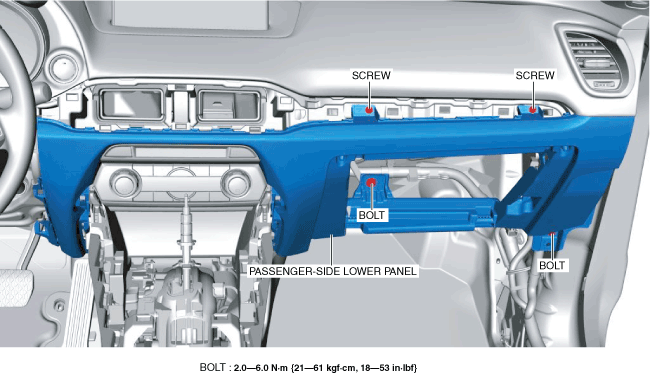

4.  Remove the bolts.

ac9uuw00005401

5.  Remove the screws.

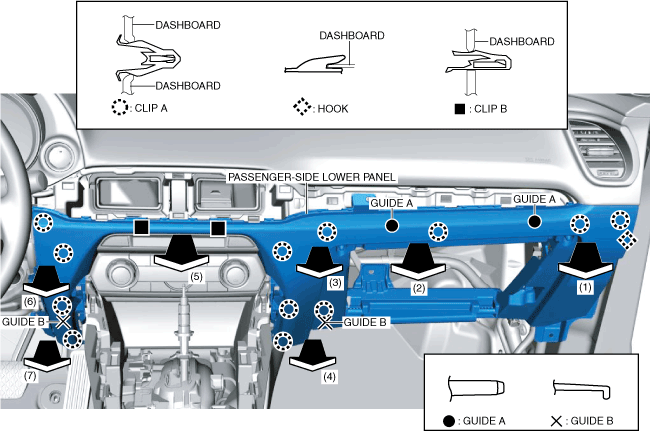

6.  Move the passenger-side lower panel in the order of arrows (1), (2), (3), (4), (5), (6) and (7) shown in the figure, and detach the clips A and clips B, hook, guides A and guides B from the dashboard.

ac9wzw00004286

7.  Install in the reverse order of removal.
