FRONT AIRFLOW MODE ACTUATOR REMOVAL

id074000840300

L.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(12) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(13) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14) Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

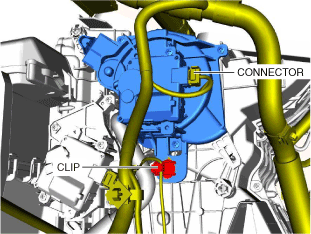

3. Detach the clip.

ac9uuw00007595

4. Disconnect the connector.

5. Remove the screws.

ac9uuw00007596

6. Remove the front airflow mode actuator.

7. Remove the airflow mode main link.

ac9uuw00007597

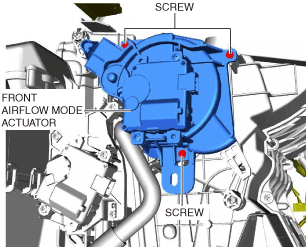

8. Remove the screws.

ac9uuw00007598

9. Remove the front airflow mode actuator from the cover.

R.H.D.
