INDICATOR UNIT REMOVAL/INSTALLATION

id092200037500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(11)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(12)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(13)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

3.  Pull the indicator unit outward to disconnect the clips from the climate control unit.

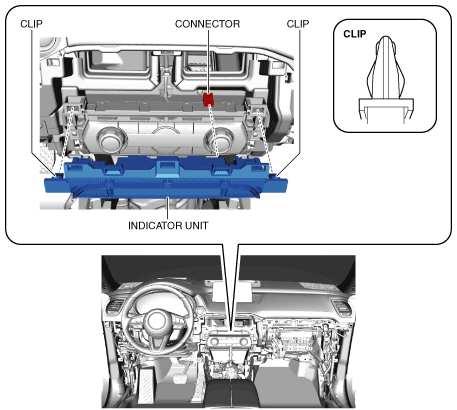

ac9uuw00006780

4.  Disconnect the connector.

5.  Remove the indicator unit.

6.  Install in the reverse order of removal.
