AIR INTAKE ACTUATOR INSPECTION

id074000801500

L.H.D.

1. Set the air intake mode to RECIRCULATE.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(12) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(13) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

4. Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL.)

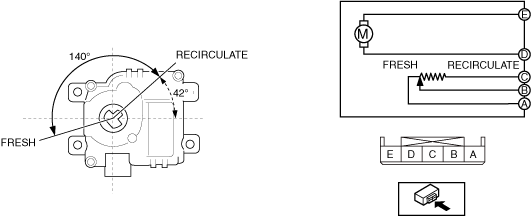

5. Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal	Ground Terminal	Operation
D	E	RECIRCULATE ? FRESH
E	D	FRESH ? RECIRCULATE

ac9wzw00005019

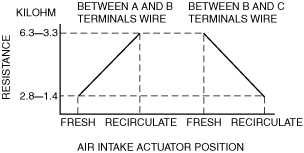

6. Verify that the resistance between terminals A and B, B and C matches the air intake actuator operation as shown in the graph.

ac9wzw00004082

• If the operation condition and resistance are not normal, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL.)(See AIR INTAKE ACTUATOR INSTALLATION.)
