FRONT DOOR HINGE REMOVAL/INSTALLATION
id091100520500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Front door (See FRONT DOOR REMOVAL/INSTALLATION.)
-
- (2) Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)
-
- (3) Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)
-
- (4) Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
-
- (5) Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION.)
-
- (6) Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
-
- (7) Front over fender bracket (See FRONT OVER FENDER BRACKET REMOVAL/INSTALLATION.)
-
- (8) Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)
-
- (9) Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
-
- (10) Front fender insulator No.1 (See FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION.)
-
- (11) Front fender insulator No.2 (See FRONT FENDER INSULATOR No.2 REMOVAL/INSTALLATION.)
-

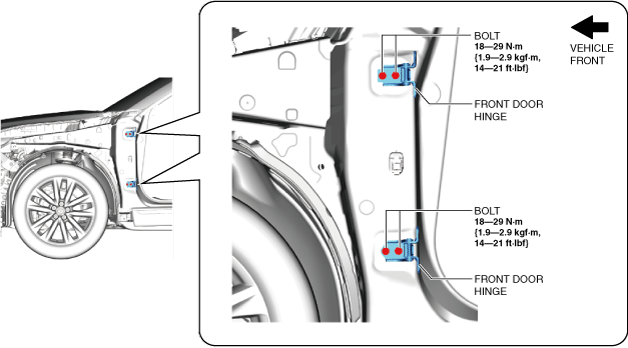

3. Remove the bolts.
4. Remove the front door hinges.
5. Install in the reverse order of removal.
6. Adjust the front door. (See DOOR ADJUSTMENT.)
7. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
