MAZDA ERA-GLONASS CONTROL MODULE BRACKET REMOVAL/INSTALLATION

id092200667500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(4)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(5)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(6)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(7)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(8)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(11)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(12)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(13)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(14)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(15)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(16)  Mazda ERA-GLONASS control module (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)

(17)  Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

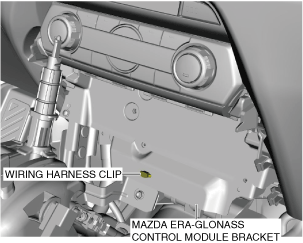

3.  Remove the wiring harness clip.

ac9wzw00005697

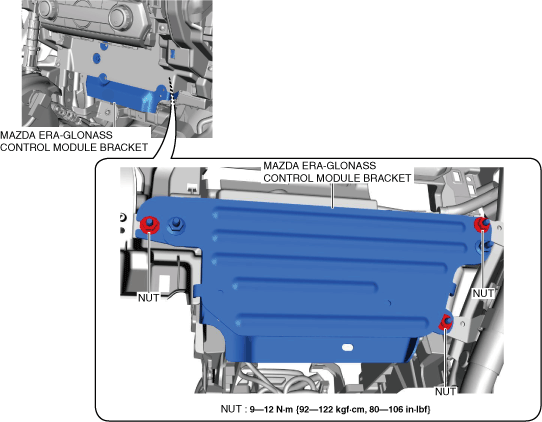

4.  Remove the nuts.

ac9wzw00005698

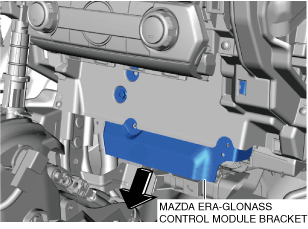

5.  Remove the Mazda ERA-GLONASS control module bracket in the direction of arrow shown in the figure.

ac9wzw00005699

6.  Install in the reverse order of removal.
